ETK-ME1004 Motenergy ME1004 PMDC Motor <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is a Permanent Magnet, Brush Type, DC Motor with Neodymium Iron Boron Magnets. The 1" shaft is similar to the shaft on most Lawn and Garden Tractor engines. This motor is perfect for an engine replacement on a Lawn and Garden tractor when converting the tractor to electric propulsion. No motor control is necessary for an engine-swap, but you will need to add a Contactor, Fuse, and 48 VDC batteries. Capable of 200 amps continuous, and 400 amps for 1 minute. The efficiency is 90%.<p>Features<p>Double brush-set<br>Sturdy 1" x 2.5" Drive Shaft <p>Specifications<p>Power: 10.75 Hp cont. -- 21 pk Hp <br>Voltage: 48 Volt rated<br>Speed: 3700 rpm @ 48V unloaded<br>Size: 8" OD, 6.4 " long (w/o shaft)<br>Shaft: 1 "x 2.5 ", 3/16" key <br>Weight: 32 lbs <br></p></font>

Motenergy ME1004 PMDC Motor
Brush-type permanent magnet DC motor with double brush-set and sturdy 1 inch x 2.5 inch shaft.

$540.99
Robot MarketPlace - Motenergy ME1004 PMDC Motor

Motors
    Etek Motors

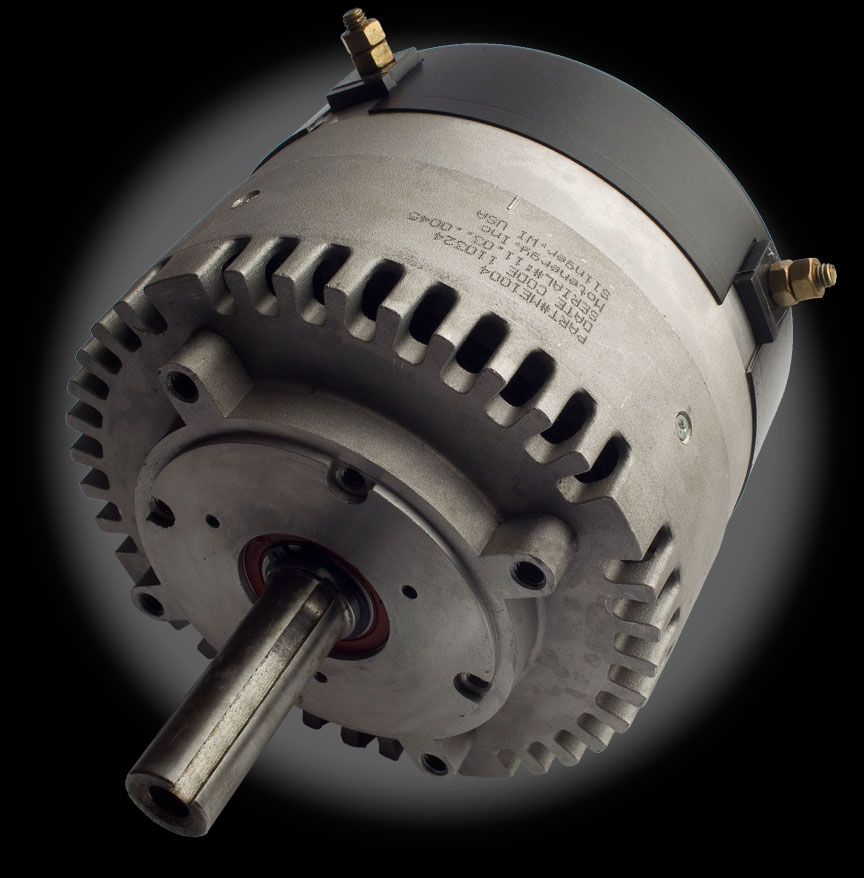

Click photo to enlarge.

Motenergy ME1004 PMDC Motor
Part# ETK-ME1004




Please see this product on the new Robot MarketPlace web site. Click here
