Motors
        Motor Mounts

$55.00
QTY
Stock Status: Available

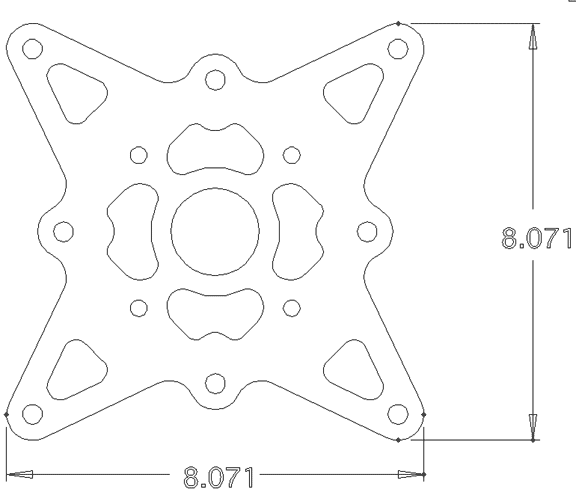

Dimensions:

2D DXF File:

Etek motor mount
Part# DCW-ETEK50

When it comes to holding down this powerful motor, you don't want to kid around. This slick-looking and extremely durable mount was designed specifically for the huge Etek motor and the rigors of Robotic Combat.

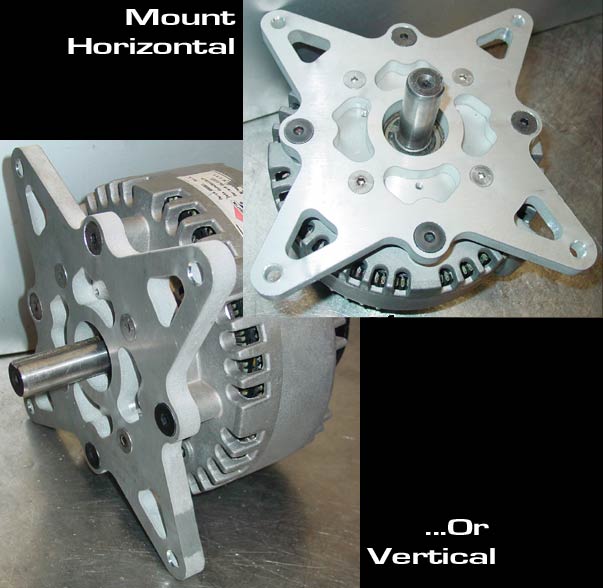

This custom-designed mount is made of 1/2" thick 6061-T6 aluminum and comes with eight countersunk bolts to fasten directly to an Etek motor without any modifications. Simply bolt up the 8 holes to the face of your Etek, and then bolt the four remaining holes on the flanges to your bulkhead, standoff posts, or frame of your bot, and you have a very solid mount for this powerful motor.

The mount has 8 countersunk holes in 3/8" and 5/16" sizes, bolts are included. Total weight (not including bolts) is 27.16oz.
