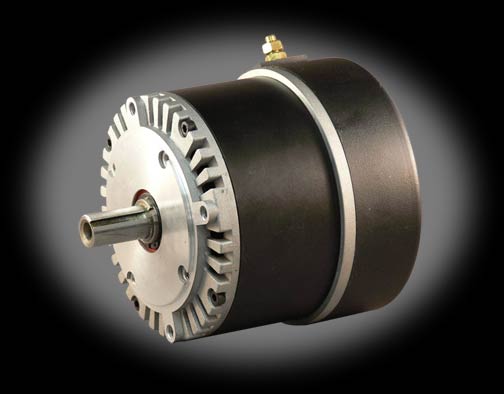

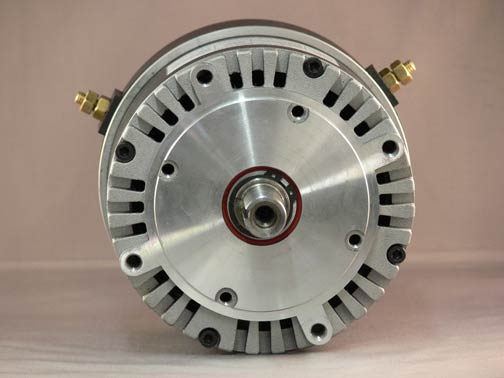

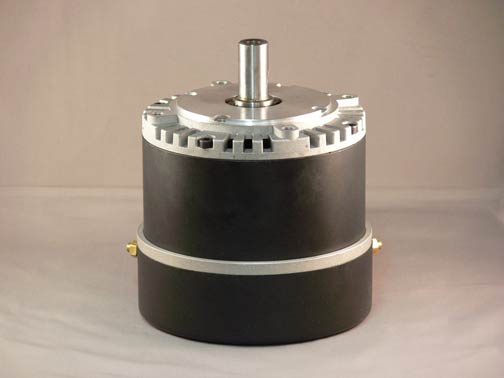

EMC-ME0909 Motenergy ME0909 PMDC Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Motenergy ME0909 is a Brush-Type, Permanent Magnet DC motor with very high efficiency. Capable of 4.8 KW continuous and 15 KW for 30 seconds. For voltages from 12 to 48 VDC input and 100 amps continuous (300 amps for 30 minutes). Designed for battery operated equipment. It makes a great replacement for the original Briggs & Stratton Etek motor because it has the same bolt pattern and is actually lighter in weight. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Power: 4 continuous, 12.8 pk hp<br />
Voltage: 12-48 Volt rated<br />
Speed: 2150-4850 rpm<br />
Size: 6" OD, (w/o shaft)<br />
Shaft: 7/8"x 1-3/4", 3/16" key<br />
Weight: 24 lbs.<br />
<br />
Voltage Constant: 0.0107<br />
Revolutions per volt: 93.45 RPM<br />
Torque Constant: 0.102 Nm/Amp<br />
Generated Current: 9.8A per Nm</font></p>
<p><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif">Please note: This item may take an additional 1-2 buisness days before it is shipped. Please <a href="http://www.robotmarketplace.com/products/contact.html">contact us</a> with any questions.</font></p>

Motenergy ME0909 PMDC Motor
The Motenergy ME0909 is a Brush-Type, Permanent Magnet DC motor with very high efficiency.

$385.00
Robot MarketPlace - Motenergy ME0909 PMDC Motor

Motors
    Etek Motors


Click photo to enlarge.

Motenergy ME0909 PMDC Motor
Part# EMC-ME0909
