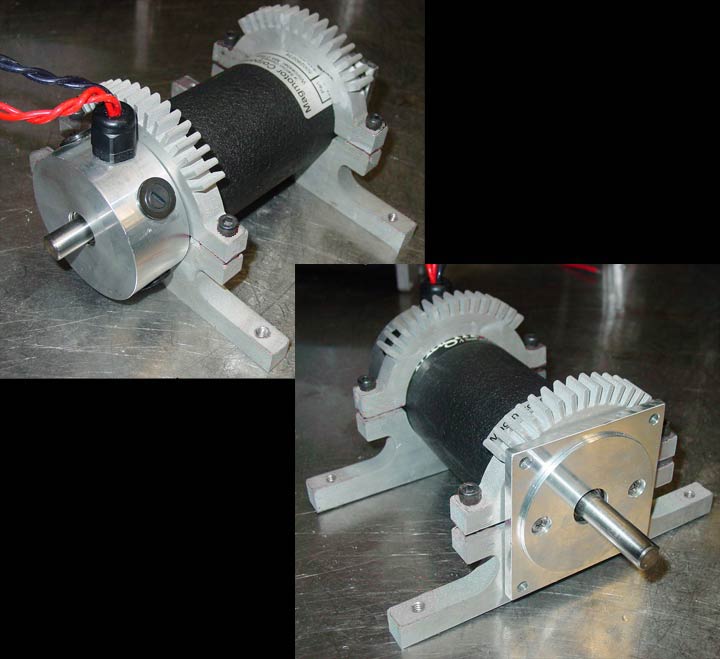

3" Magmotor Mounts

These are custom-designed for the 3" Magmotors, (these motors technically have a 2.75" diameter housing, but are known as the '3" Magmotors'), this mount will also fit other motors with a 2.75 " diameter housing. These will fit both the S28-150 or the S28-400 Magmotor.

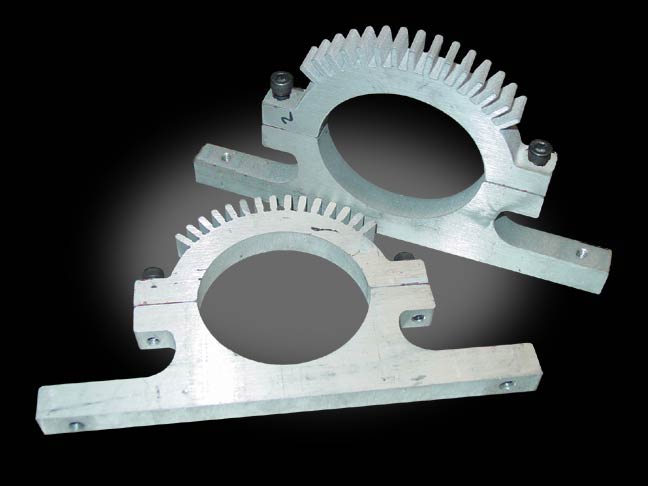

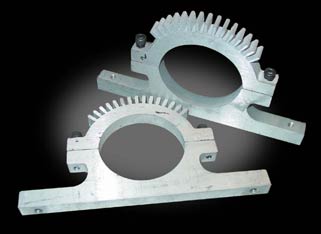

Available with and without the heat-sink fins. The addition of the cooling fins helps disburse the heat that this motor can produce, allowing your motor to run more efficiently.

Choose from 1/2" or 3/4" thick 6061-T6 aluminum (1/2" thickness shown in these photos). All mounts come with two holes in the base for 1/4" screws, and two bolts are included to attach the top half of the mount around your motor- couldn't be more simple to install.

There are no other mounts made for this motor that are specifically-designed for fast swap-out. Nothing worse that having to break down your entire robot just to get a motor out, especially during a frantic competition. With these mounts, 2 bolts from the top of each mount, and you can lift the motor right out.

Mounts are sold individually, you may want to use two per motor.

D-Pack Motor Mounts

These are the same mounts as above, but made to fit the slightly larger diameter D-Pack motors.

Available with and without the heat-sink fins. The addition of the cooling fins helps disburse the heat that this motor can produce, allowing your motor to run more efficiently.

Choose from 1/2" or 3/4" thick 6061-T6 aluminum (1/2" thickness shown in these photos). All mounts come with two holes in the base for 1/4" screws, and two bolts are included to attach the mount around your motor- couldn't be more simple to install.

There are no other mounts made for this motor that are specifically-designed for fast swap-out. Nothing worse that having to break down your entire robot just to get a motor out, especially during a frantic competition. With these mounts, 2 bolts from the top of each mount, and you can lift the motor right out.

Mounts are sold individually, you may want to use two per motor.

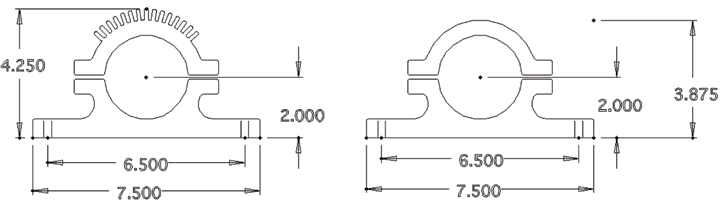

Dimensions:

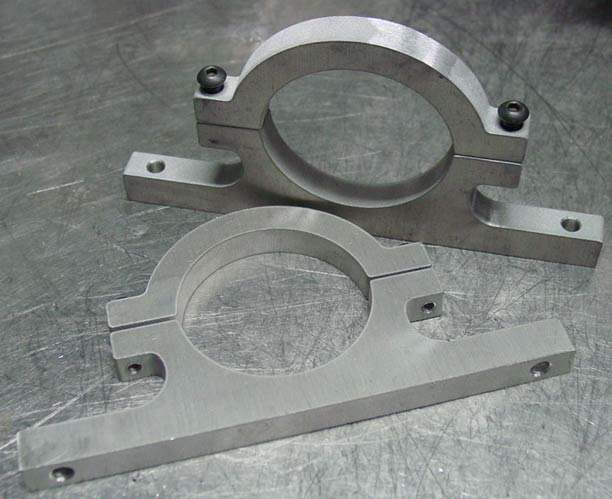

Click to see non-heatsink version

EV Warrior Motor Mount

The perfect, light weight solution to mounting the very popular EV Warrior motors.

Made from Green UHMW. This very interesting material is very light, yet surprisingly strong. Polyethylene UHMW has a high melt viscosity, has outstanding toughness and cut/wear resistance and very good chemical resistance.

Stock EV Mount
Clamp style mounts, standard 1/4" mounting holes. Designed for quick swap-out of the motor, you don't need to disassemble your entire robot to swap out a motor- 2 bolts on the top, and your motor is free.

Dimensions:
6" wide, 5" tall, 1.25" thick
only 13.5 oz each!

Etek Motor Mount

When it comes to holding down this powerful motor, you don't want to kid around. This slick-looking and extremely durable mount was designed specifically for the huge Etek or x950 motor and the rigors of Robotic Combat.

This custom-designed mount is made of 1/2" thick 6061-T6 aluminum and comes with eight countersunk bolts to fasten directly to an Etek motor without any modifications. Simply bolt up the 8 holes to the face of your Etek, and then bolt the four remaining holes on the flanges to your bulkhead, standoff posts, or frame of your bot, and you have a very solid mount for this powerful motor.

The mount has 8 countersunk holes in 3/8" and 5/16" sizes, bolts are included. Total weight (not including bolts) is 27.16oz.

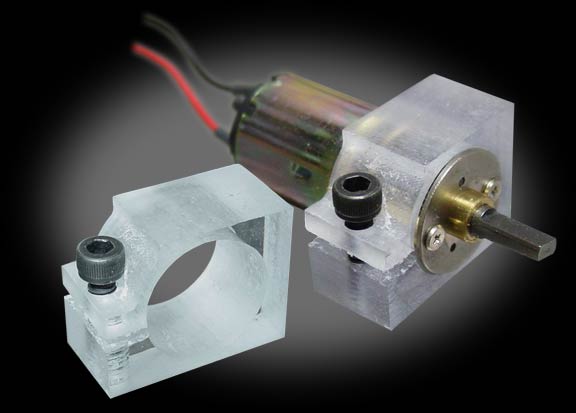

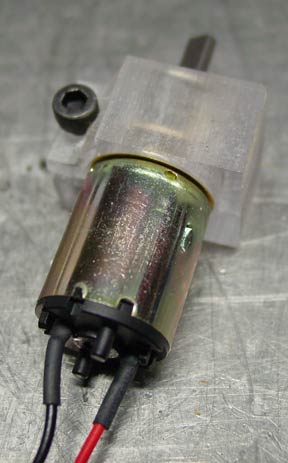

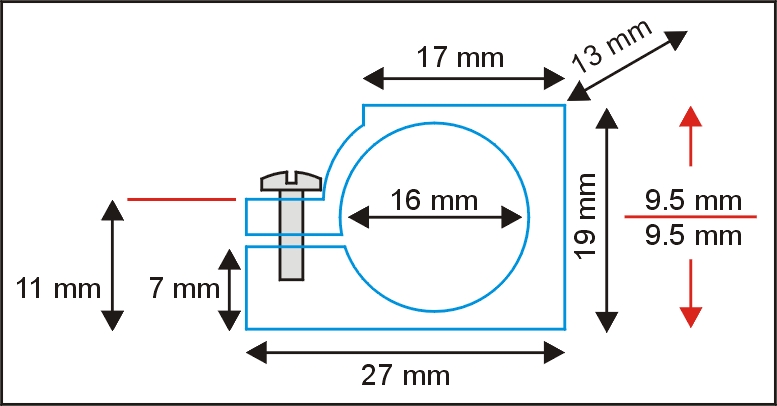

Mount for COPAL Gearmotors

Finally, a lightweight mount that not only holds your 12V or 6V 50:1 Copal motors, but also protects the exposed metal gears by completely enclosing the gearbox.

This simple mount is CnC milled from Lexan, and can't be more simple- just insert your motor and tighten the included 4-40 screw to keep the motor in place. There is enough space to drill and tap your own mounting holes if desired, or hold in place with your choice of adhesive or fastener.

Weight 0.1 oz (4 grams) each, including screw.
