Victor
883 Speed Controller
The
Victor 883 is a 60A speed controller specifically engineered for
robotic applications. It is currently our most popular-selling
speed controller! Many builders choose the Victor for it's small
size and weight, combined with it's awesome battle-tested reputation.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
12V Fan
Operating Voltage |
6V to
16V |
24V Fan
Operating Voltage |
12V to
30V |
Maximum
Current
|
60A continuous |
Surge
Current |
100A for <
2 second
200A for < 1 second |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward, reverse, or off |
Weight |
0.25 lbs
(4 oz) |
|
|
|
Victor
885 Speed Controller
The
Victor 885 replaces the Thor 883. Improvements in FET technology
and switching technology allow the Victor 885 to handle 120A continuous.
The high current capacity, low voltage drop, and peak surge capacity
make the Victor 885 ideal for drive motors.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
12V Fan
Operating Voltage |
6V to
16V |
24V Fan
Operating Voltage |
16V to
30V |
Maximum
Current
|
120A continuous |
Surge
Current |
200A for <
2 second
300A for < 1 second |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward, reverse, or off |
Weight |
0.25 lbs
(4 oz) |
|
|
|
Thor
883 Speed Controller
Some
builders still prefer the original Thor 883 to the newer Victor
885, so we stock these units as well. A few builders have
reported smoother operation and accelleration with the Thor 883.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
12V Fan
Operating Voltage |
6V to
16V |
24V Fan
Operating Voltage |
16V to
30V |
Maximum
Current
|
120A continuous |
Surge
Current |
200A for <
2 second
300A for < 1 second |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward, reverse, or off |
Weight |
0.25 lbs
(4 oz) |
|
|
|

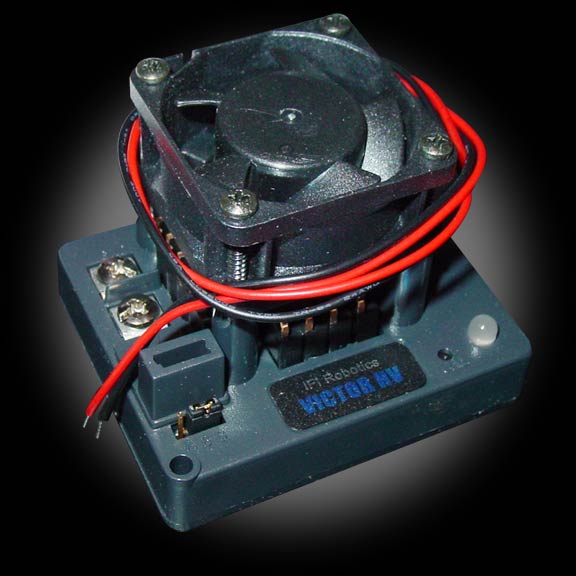

Victor-HV
36V Speed Controller
Finally,
a 36V Victor! For several years now, builders have been hoping
for a Victor speed controller that can run motors up to 36V, well
here it is! Comes with your choice of a 12V or 24V fan.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
Operating
Voltage |
12V to
43V (software limited) |
12V Fan
Operating Voltage |
6V to
16V |
24V Fan
Operating Voltage |
16V to
30V |
Maximum
Current
|
120A continuous |
Surge
Current |
330A for < 3
seconds |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward, reverse, or off |
Weight |
0.25 lbs
(4 oz) |
|
|
|
Victor-HV
48V Speed Controller
Finally,
a 48V Victor! For several years now, builders have been hoping
for a Victor speed controller that can run motors up to 48V, well
here it is! Comes with your choice of a 12V or 24V fan.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
Operating
Voltage |
12V -
60V (software limited) |
12V Fan
Operating Voltage |
6V to
16V |
24V Fan
Operating Voltage |
16V to
30V |
Maximum
Current
|
90A continuous |
Surge
Current |
220A for < 3
seconds |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward, reverse, or off |
Weight |
0.25 lbs
(4 oz) |
|
|
|
Victor
883 SC (Spin Controller)
The
Victor 883 SC is a 90A spin controller specifically designed
for spin-bots and inertia devices. It is meant to not be reversible,
only proportional forward and off.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
12V Fan
Operating Voltage |
6V to
16V |
24V Fan
Operating Voltage |
12V to
30V |
Maximum
Current
|
90A continuous |
Surge
Current |
100A for <
2 second
200A for < 1 second |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward or off |
Weight |
0.25 lbs
(4 oz) |
|
|
|
Thor
SC (Spin Controller)
The
Thor SC is a 150A spin controller specifically designed for spin-bots
and inertia devices.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control
Signal
Standard
|
R/C Type
PWM (Pulse Width Modulation) single-channel |
24V Fan
Operating Voltage |
16V to
30V |
Maximum
Current
|
150A continuous |
Surge
Current |
200A for <
2 second
300A for < 1 second |
Power
Connector Type
|
8-32 Screw
Terminals |
Signal
Connector Type
|
Use a
standard non-shrouded PWM cable (3 wires) |
Typical
Application |
Power
one motor with variable speed forward or off |
Weight |
0.25 lbs
(4 oz) |
|
