IFI Victor SC
Part# IFI-SC883

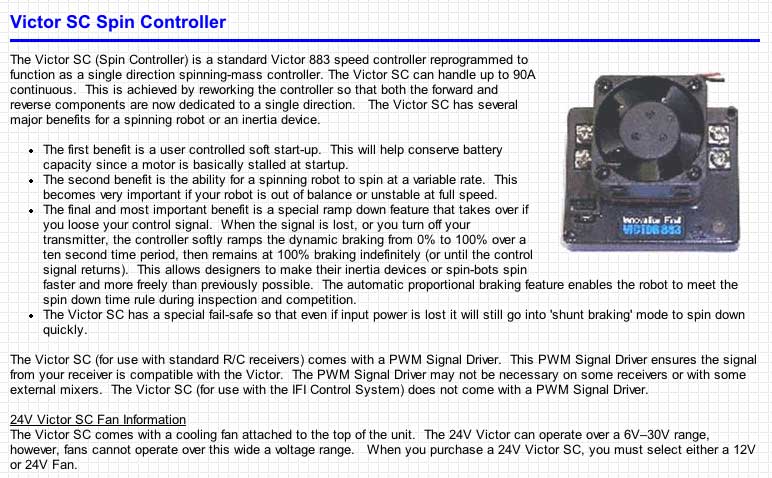

The
Victor 883 SC is a 90A spin controller specifically designed for spin-bots
and inertia devices. It is meant to not be reversible, only proportional
forward and off.
This
unit is compatible with standard R/C equipment using the PWM
Signal Driver.
Control Signal
Standard
|
R/C Type PWM
(Pulse Width Modulation) single-channel |
| 12V Fan Operating
Voltage |
6V to 16V |
| 24V Fan Operating
Voltage |
12V to 30V |
Maximum Current
|
90A continuous
|
| Surge Current
|
100A for <
2 second
200A for < 1 second |
Power Connector
Type
|
8-32 Screw Terminals
|
Signal Connector
Type
|
Use a standard
non-shrouded PWM cable (3 wires) |
| Typical Application
|
Power one motor
with variable speed forward or off |
| Weight |
0.25 lbs (4 oz) |
|
| |
|
|
