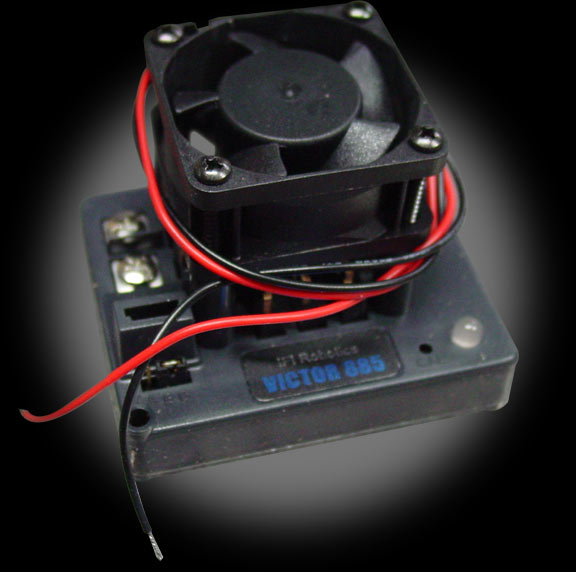

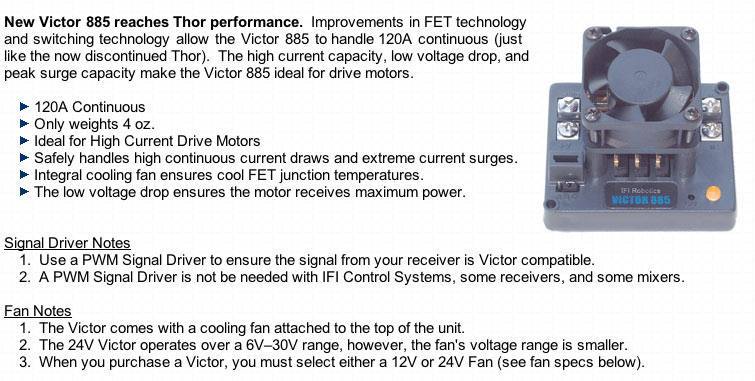

IFI-V885 IFI Victor 885 <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
Victor 885 replaces the Thor 883.&nbsp; Improvements in FET technology
and switching technology allow the Victor 885 to handle 120A continuous.&nbsp;
The high current capacity, low voltage drop, and peak surge capacity
make the Victor 885 ideal for drive motors. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
unit is compatible with standard R/C equipment using the <a href="IFIW-SIG36.html" target="_top">PWM
Signal Driver</a>.</font></p>
<table width="80%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Signal
<br>
Standard <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">R/C Type PWM
(Pulse Width Modulation) single-channel</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V Fan Operating
Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V to 16V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V Fan Operating
Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16V to 30V
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Current
<br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">120A continuous
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Surge Current
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">200A for &lt;
2 second <br>
300A for &lt; 1 second</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Connector
Type <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-32 Screw
Terminals </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Signal Connector
Type <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use a standard
non-shrouded PWM cable (3 wires) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Typical Application
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power one motor
with variable speed forward, reverse, or off </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.25 lbs (4
oz)</font></td>
</tr>
</table>
