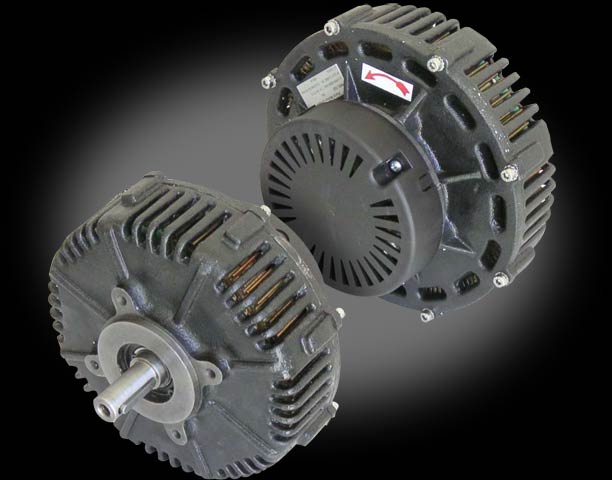

Perm Motor PMG 132

This is it, folks. The bigest, baddest motor we've ever seen under 25 pounds!  The bigger brother to the PMG 080, it is similar in size and weight to a Briggs & Stratton ETEK, but at the same voltage it has a 50% higher peak power output, a 40% higher torque constant and 120% more stall torque.  The PMG 132 is a "pancake" style neutrally-timed, brushed, permanent magnet DC motor manufactured by Perm Motor in Germany.  It is similar in design to the Lynch/LEMCO LEM-200 and Briggs & Stratton ETEK motors.  The armature is made of flat copper strips stacked together so there's no stack of steel laminations like in a traditional motor which gives the motor low cogging.  Its high power, high efficiency and comparably small size make it a good choice for small electric vehicles, electrathon vehicles, generators, go-karts and robots.  The motor's body is 222 mm (8.75") in diameter and 120 mm (4.72") long.  The shaft is 19 mm (0.748") in diameter and 43 mm (1.69") long with key and threaded hole.

Specifications:

Voltage:

24-72

 V
Weight:

24.8

  lb
Angular-velocity constant:

50.2

  rpm/V
Torque constant:

27

 ozf·in/A
Terminal resistance:

0.025

  Ohm

No-load current:

6

  A
Rotor Inertia:

1370

  oz·in²
Inductance:

19

  µH
Continuous current:

110

  A
10 minute current:

200

  A
Terminals: 8  mm

48 V Performance
Peak efficiency:

86

  %
Peak power:*

15.1

  hp
No-load angular velocity:*

2380

  r/min
Stall current:*

960

  A
Stall torque:*

25600

  ozf·in

72 V Performance
Peak efficiency:

88.6

  %
Peak power:*

34.3

  hp
No-load angular velocity:*

3590

  r/min
Stall current:*

1440

  A
Stall torque:*

38500

  ozf·in

* These numbers assume a 0.025 Ohm power source resistance.



Perm Motor PMG 080

WOW- That's all we can say about this one. Almost 4 horsepower from a 7.5 pound motor!

The PMG 080 is a "pancake" style neutrally timed, brushed permanent magnet DC motor manufactured by Perm-Motor in Germany.

Its high efficiency and high power make it a good choice for electrathon vehicles, generators, go-karts and robots.

Specifications:
Voltage: 12/24VDC
Weight: 7.5 lb
Size: 5.9" diameter, 3.5" long
Shaft: 12mm diameter x 27mm long
Shaft has threaded hole, M6 x 12, 16.2 mm deep
Mounting holes are M6 x 15, 13.8 mm deep
Wires: two 8 gauge, about 1.5 feet long each
Angular-velocity constant: 291 rpm/V
Torque Constant: 4.67 ozf-in/A
No-Load current: 7.8 A
Rotor Inertia: 115 oz-in²
Inductance: 2.6 µH
Continuous current: 78 A
10 min current: 115 A

  12 V 24V
Peak efficiency

76.7%

83.2%
Peak Power 0.958 hp 3.95 hp
No-load angular velocity 3390 r/min 6880 r/min
Stall current 253 A 505 A
Stall torque 1140 ozf-in 2320 ozf-in
