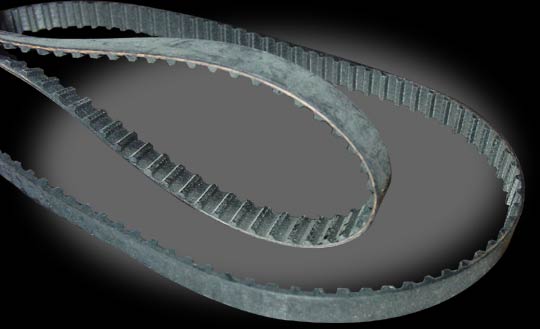

Gates PowerGrip® Timing Belts - Series 9257
(Trapeziod tooth profile)
For use with our Timing Pulleys

PowerGrip® Timing Belts have helically-wound fiberglass tension members embedded in a Neoprene body to provide high strength, excellent flex life, and high resistance to elongation. The Neoprene body provides protection against grime, grease, oil, heat, and moisture. The Nylon tooth facing provides a durable wear surface for long service life. The use of these belts eliminates lubrication and re-tensioning to reduce maintenance and labor required on drive systems.

Timing belt pitch is determined by the distance from center to center of the teeth (in inches). It is shown in the second part of the belt designation by a letter or letters. Letters correspond to pitches as follows:

MXL = Mini Extra Light 0.080" pitch
XL = Extra Light 0.200" pitch
L = Light 0.375" pitch
H = Heavy* 0.500" pitch
XH = Extra Heavy* 0.875" pitch
XXH = Double Extra Heavy*

1.250" pitch

* = Special Order Only
Calculate your Timing Belt Length here:
Diameter of Small Pulley: inches
Diameter of Large Pulley: inches
Distance between pulley centers: inches

Length of Belt = inches

Click here when you are ready to purchase your timing belts
