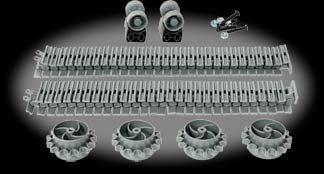

VEX-VRC-TANK-TREAD VEXplorer Tank Tread Kit <p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Tank treads distribute a vehicle's weight more evenly than wheels, allowing a
robot to maneuver in loose sand, or on spongy surfaces which would otherwise
cause the robot to sink. Treads will also keep the robot from high-centering;
this will allow a robot to climb over obstacles, or move over rough terrain.
The VEXplorer Tank Tread Kit will allow you to take your VEXplorer to places
it could never go before.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br>
Dramatically increase design flexibility
<br>
Transverse rough terrain<br>
Drive through sandy or soft, spongy surfaces<br>
Increase traction<br>
Every section is a master link</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Vex
Robotics</font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical
Information</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">2
preassembled chains of 56 links each</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Master
Links</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">112
total, each link is a Master link (change length by adding or
removing links)</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Tread
Width</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">1.5
inches</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Tread
Drive Diameter</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">2.375
inches (approx)</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Material</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Delrin
plastic</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Center
Hole size</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">0.182
in. square</font></td>
</tr>
</table>
<p></p>

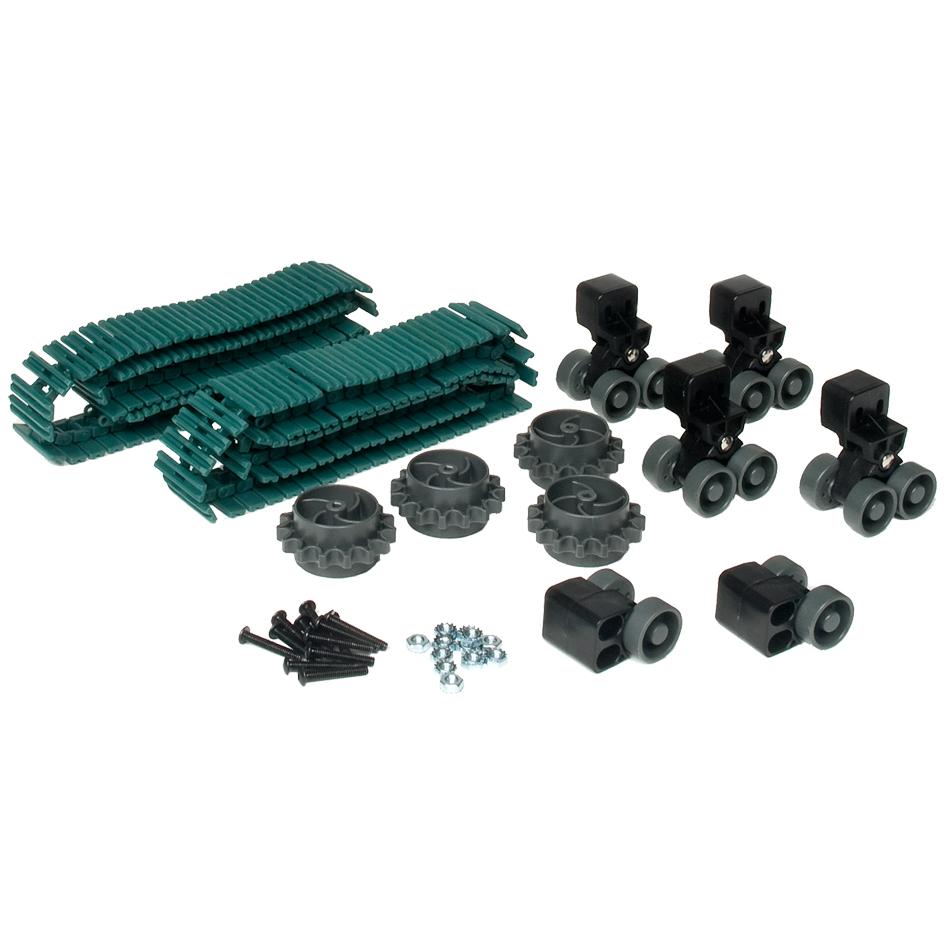

<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List
of Contents -- Quantity</font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Description</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Preassembled
chains of 56 links each</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Tank
Tread Drive Wheels</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Tank
Tread Idler Wheels</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">8-32
x 1&quot; Tank Tread Idler Wheels Screws</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Keps
Nut</font></td>
</tr>
</table>
