VEX-276-2166 VEX Robotics Sprocket and Chain Kit <p align="left"> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Transfer
power from a servo or motor to multiple points on your robot. Allows you
to give your bot abilities previously unavailable to Vex users, such as extendable
ladders, rotating turrets, and more.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Every link
of the chain is a master-link, so you can easily customize the length of chain
desired. Easy to snap apart and back together by flexing the chain laterally.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 preassembled chains of 163 links each, total of 48 in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Master Link </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">326 total </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chain Material </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Plastic</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chain Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.25 in. wide </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chain and Sprocket Pitch </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.1475 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sprocket OD </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10t = .526 in. | 15t = .75 in. | 24t = 1.18 in. | 40t = 1.93 in. | 48t = 2.3 in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Center Hole Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.125 in. square </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 preassembled chains of 163 links each, total of 48 in. of chain</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10-tooth sprockets (.526" diameter)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15-tooth sprockets (.75" diameter)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24-tooth sprockets (1.18" diameter)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">40-tooth sprockets (1.93" diameter)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">48-tooth sprockets (2.3" diameter)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Inventor's Guide Insert</font></td>
</tr>
</table>

VEX Robotics Sprocket and Chain Kit
Transfer power from a servo or motor to multiple points on your robot. Allows you to give your bot abilities previously unavailable to Vex users, such as extendable ladders, rotating turrets, and more.

$29.99
Robot MarketPlace - VEX Robotics Sprocket and Chain Kit

Robot Kits
    VEX Motion

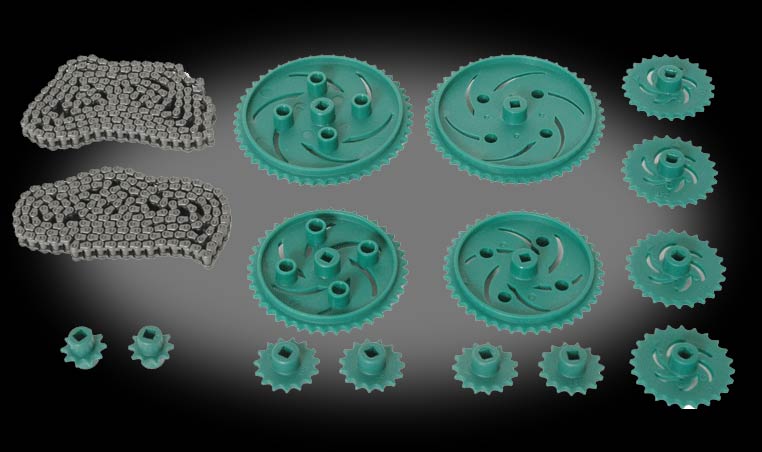

Click photo to enlarge.

VEX Robotics Sprocket and Chain Kit
Part# VEX-276-2166
