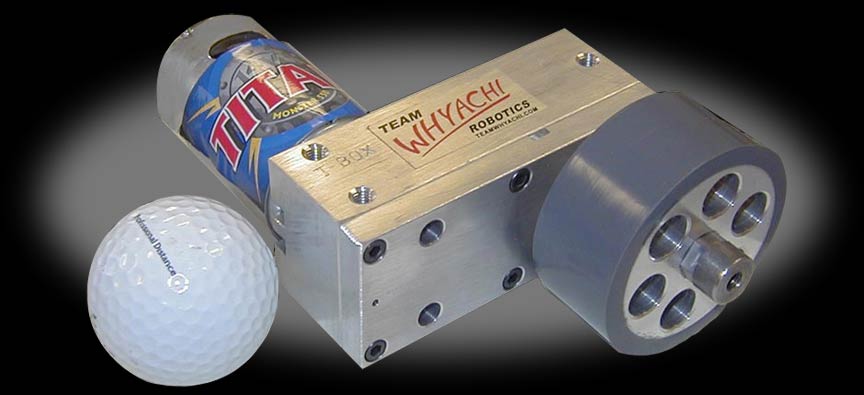

Looking
for a super small, efficient and reliable drive for your small robot
(up to 60 lbs)? You've come to the right place. These awesome little
gearboxes use the very inexpensive (under $25) Titan RC motors available
from many hobby stores. Combined with the TW shafts
and wheels (available here in the MarketPlace),
you'll have a killer setup. These T-Boxes have also been successfully
paired with our Small Johnson
motors. Motor not included.
* 1.5"
Tall Invertible Design-symmetrical for left or right side use
* Uses Inexpensive Titan 550 motors or equivalent (motor not included)
* Uses the same shafts and wheels as the TWA40 Gearbox above
* Fortal aluminum box and wheel
Ratio:
11.52:1 3 stage
Output Speed: 1300 RPM @ 14.4V
Constant Torque: 15 in lb @ 14.4V
Stall Torque: 60 in lb
Assembled Weight (Gearbox, shaft and wheel): 1.6 lb
Max Speed: 9 MPH with 2.25" Dia Wheel
