AME-206-1005 AME 206-series RH Gearmotor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Small<br />
Powerful <br />
High speed <br />
Water resistant <br />
High Power<br />
For use with acme thread <br />
Left and Right hand housing <br />
Repeatable intermitten action<br />
Weighs 1.2 pounds</font></p>
<p align="left"><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif">Note: This motor does NOT come with the bracket shown in the dimensional drawing</font></p>
<table border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Nominal
Voltage</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12vdc</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Nominal RPMs</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">115
rpm </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
at No load</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.7-3.3</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
at Stall</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">18.6-22.7</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall Torque</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">850 oz-in (61.2 kg-cm)</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.2lbs</font></td>
</tr>
<tr>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">20mm </font></td>
</tr>
<tr>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td class="main"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">13mm</font></td>
</tr>
</table>
<p></p>

AME 206-series RH Gearmotor
A small, powerful motor.

$54.99
Robot MarketPlace - AME 206-series RH Gearmotor

Motors
    AME Motors

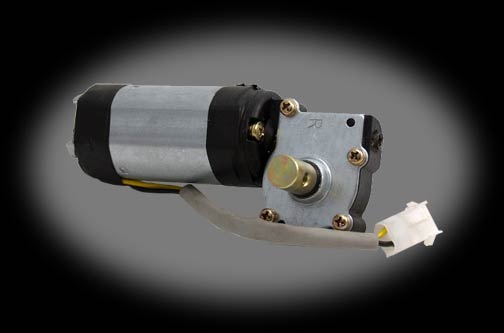

Click photo to enlarge.

AME 206-series RH Gearmotor
Part# AME-206-1005
