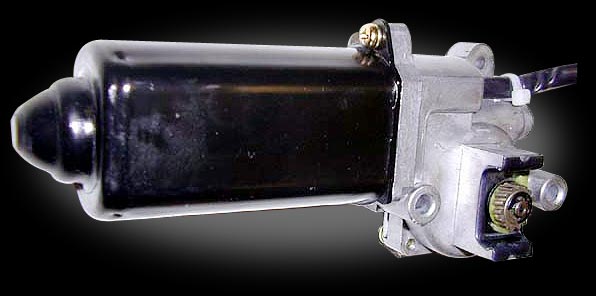

This
is a great little gearmotor from AM Equipment that was originally made to
be used as a sunroof retracting motors in cars. Perfect for small robot applications
such as the drive motors for a featherlightweight robot, or maybe for some
other system in your bot. This is obviously AME's smallest and lightest motor
at 1.35 Lbs, and less than 6 & 1/2 inches long. -The neat thing about
it is, of all of AME's great gearmotors, this is the very fastest of the
bunch at 165 RPM!
This motor
is manufactured by AM Equipment. It has built in gear reduction, a circuit breaker,
and 0.1 µF noise suppression capacitor.
| Specifications
for rotation in both directions: |
Motor
only performance. |
Typical
system performance. |
| Original
MFG Part # |
203-5000 |
| Voltage: |
12 V |
| Weight: |
1.35lb |
| Angular-velocity
constant: |
16.4 rpm/V |
| Torque
constant: |
82.6 ozf·in/A |
| Armature
resistance: |
0.96 ohm |
| No-load
current: |
2 A |
| Peak
efficiency: |
36 % |
| Power
source resistance: |
0 ohm |
0.96 ohm |
| Peak
power: |
0.0355 hp |
0.016 hp |
| No-load
angular velocity: |
165 rpm |
134 rpm |
| Stall
current: |
12.5 A |
6.25 A |
| Stall
torque: |
867 ozf·in |
351 ozf·in |
|
