0-PL1393 Jrk 12v12 USB Motor Controller with Feedback <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The JRK 12v12 is a versatile, general-purpose motor controller that supports a variety of interfaces, including USB. The 6V to 16V operating range and high continuous output current of 12A (30A peak) allow this board to control many medium-sized DC brushed motors. Analog voltage and tachometer (frequency) feedback options allow quick implementation of closed-loop servo systems, and a free configuration utility (for Windows XP or Vista) allows easy calibration and configuration through the USB port.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key improvements over competing products include:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
USBconnectivity with emulated serial (COM) port allows direct motor control from a PC.<br>
Ultrasonic PWM to eliminate switching-induced motor shaft hum or whine.<br>
Robust, high-speed communication protocol with user-configurable error condition response.<br>
High internal resolution (12 bits) for smooth and flexible calibration to various input and feedback devices.<br>
Current sensing and limiting.<br>
Reversed power protection.<br>
Field-upgradeable firmware.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Main Features of the JRK 12v12</font></p>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Simple bidirectional control of one DC brush motor.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6&nbsp;V to 16&nbsp;V operating supply range.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12&nbsp;A maximum continuous current output (30&nbsp;A peak).</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Four communication or control options:
</font>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><span class="caps">USB</span> interface for direct connection to a PC.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full-duplex, <span class="caps">TTL</span>-level asynchronous serial interface for direct connection to microcontrollers or other embedded controllers.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hobby radio control (RC) pulse width (PWM) interface for direct connection to an RC receiver or RC servo controller.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0–5&nbsp;V analog voltage interface for direct connection to potentiometers and analog joysticks.</font></li>
</ul>
</li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Two closed-loop feedback options:
</font>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0–5&nbsp;V analog voltage.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Frequency/tachometer digital input up to 2&nbsp;MHz with 1&nbsp;ms <span class="caps">PID</span> period.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(Open-loop control with no feedback also available.)</font></li>
</ul></li>

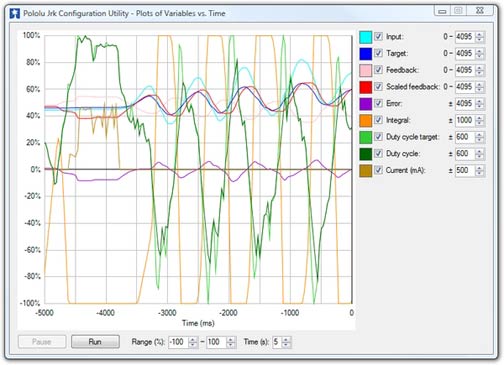

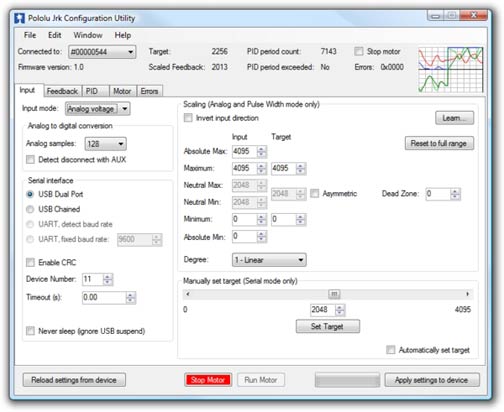

<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Simple configuration and calibration over <span class="caps">USB</span> with free configuration program (Windows XP and Vista compatible).</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Configurable parameters include:
</font>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><span class="caps">PID</span> period and <span class="caps">PID</span> constants (feedback tuning parameters).</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum current.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum duty cycle.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum acceleration.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Error response.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input calibration (learning) for analog and RC control.</font></li>
</ul>
</li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Optional <span class="caps">CRC</span> error detection eliminates communication errors caused by noise or software faults.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversed power protection.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Field-upgradeable firmware.</font></li>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Optional feedback potentiometer disconnect detection.</font></li>
</ul>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Interface </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">USB; non-inverted TTL serial; RC servo pulses; analog voltage </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-16V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">30A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Auto-detect Baud Rate Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">300-115,200 bps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Available Fixed Baud Rates </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">300-115,2000 bps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Available PWM Frequencies </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20 kHz, 5 kHz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reverse Voltage Protection?</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">USB Connector Style </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">USB Mini-B </font></td>
</tr>
<tr>

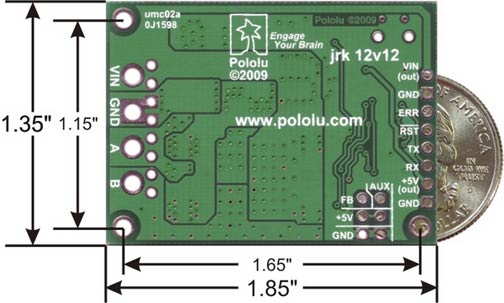

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.35 x 1.85 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.5 oz. </font></td>
</tr>
</table>

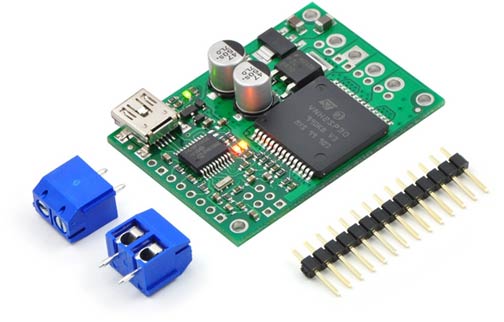

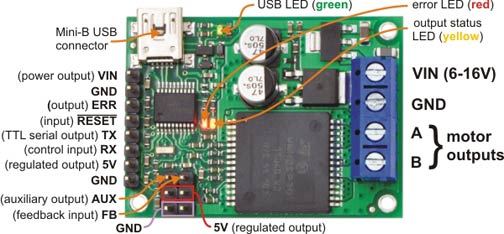

<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Included Hardware</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
The JRK ships with a 14x1 straight 0.100" male header strip and two 5mm, 2-pin terminal blocks. To provide maximum flexibility, none of these parts are soldered to the board.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For the most compact installation, you can solder wires directly to the JRK pads themselves and skip using the included hardware. The included hardware allows you to make less permanent connections. You can break the 14x1 header strip into an 8x1 piece and two 3x1 pieces and solder these strips into the JRK’s I/O pads.</font></p>
<p><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif">Note:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> A USB cable is not included.</font></p>

Jrk 12v12 USB Motor Controller with Feedback
The 6V to 16V operating range and high continuous output current of 12A (30A peak) allow this board to control many medium-sized DC brushed motors.

$99.99
Robot MarketPlace - Jrk 12v12 USB Motor Controller with Feedback

Electronics
    Pololu Motor Controllers

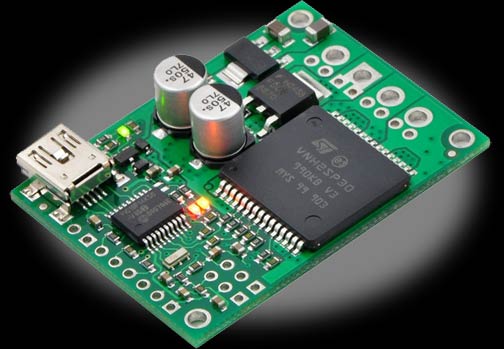

Click photo to enlarge.

Jrk 12v12 USB Motor Controller with Feedback
Part# 0-PL1393
