0-PDX256 PDX256 - 256:1 Gearmotor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Finally! A high powered gearmotor solution for hobbyweight robots. For this geared motor, we combined a rugged Banebots 256:1 gearbox with a very powerful DuraTrax 550 motor, resulting in a bolt-in ready gearmotor that will provide plenty of power at a price that won't break the bank. You can replace the DuraTrax RS-550 motor with any RS-540, RS-545 or RS-555 or similar motor. </font></p>
<table width="285" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Planetary</font></td>
</tr><tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stages</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 - 4:1, 4:1, 4:1, 4:1 </font></td>
</tr><tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Material </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Steel</font></td>
</tr><tr>
<td width="136" class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Speed</font></td>
<td width="143" class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">90
rpm</font></td>
</tr>

<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Amps
@ nominal: </font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">3.8A
Amps</font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency:</font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">45.33%</font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak
Power:</font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">0.55
hp</font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
current: </font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">148
A </font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
torque: </font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">1400 in-lb </font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight: </font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">19.05
oz (540 grams)</font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Size:</font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5&quot; (38.1mm) square </font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Length:</font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">5</font><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">&quot; (127mm)</font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft
diameter:</font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">1/2&quot; (12.7mm) </font></td>
</tr>
<tr>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft
length:</font></td>
<td class="main"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5&quot; (38mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Key </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.125in. (3.2mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft End Tap </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">#10-32</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes (8) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">#10-32</font></td>
</tr>
</table>

PDX256 - 256:1 Gearmotor
Finally a 550 size motor with a gearbox, available together from Robot MarketPlace!

$99.99
Robot MarketPlace - PDX256 - 256:1 Gearmotor

Motors
    BaneBots Motors

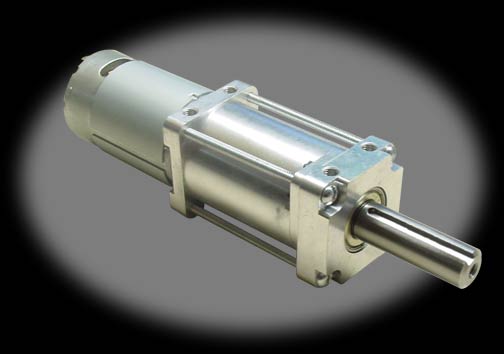

Click photo to enlarge.

PDX256 - 256:1 Gearmotor
Part# 0-PDX256




Please see this product on the new Robot MarketPlace web site. Click here
