0-P60K-55-0004 BaneBots P60 Gearbox, RS-540/550 Mount, 26:1 <div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/ZLLQXDcXAKE?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="BaneBots P60 Gearbox Installation - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/P60.jpg" alt="BaneBots P60 Gearbox Installation - The Robot MarketPlace" /></a></div></div><p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><font color="cccccc">Some assembly required </font><br>
Gearbox will be delivered assembled and tested; however, it will need to be disassembled to grease and mount the motor prior to use. No special tools are required, typically only a screw driver and allen wrench. A small arbor press or bench vise is useful for pushing the pinion onto the motor shaft. The gearbox <b><font color="ff0000">MUST BE GREASED</font></b> prior to use, grease <b><font color="ff0000">IS NOT INCLUDED</font></b> and must be purchased separately. We recommend Mobil XHP 222 Special grease; however, most lithium based ball bearing grease can be used. We do not sell grease separately, it can be readily purchased from most local auto parts stores or online suppliers such as <a href="http://www1.mscdirect.com/CGI/NNPDFF?PMPAGE=2581&PMITEM=60002599&PMCTLG=00">MSC</a> and <a href="http://www.mcmaster.com/#mobilgrease-xhp-222-grease/=57fc6b">McMaster</a> among others.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><font color="cccccc">Motor</font><br>
This gearbox will mount one RS-540, RS-545, RS-550, RS-555 or similar motor. <br>
MOTOR NOT INCLUDED - Motor must be purchased separately. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><font color="cccccc">Mounting hardware included </font><br>
Gearbox includes one mounting kit. Mounting kit contains everything required to mount 1 motor including pinion, screws, and lock washers to attach the motor to the gearbox.
</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><font color="cccccc">Important note </font><br>
Mounting a large load to the end of an unsupported shaft may damage the gearmotor. The shafts on these motors are supported by two ball bearings making them fairly rugged; however, we do not recommend them to be used with large overhung loads. We recommend using a design that supports the end of the shaft. If it is not possible to support the end of the shaft, we recommend mounting the load as close to the face of the gearmotor as possible and cutting the shaft to length.
</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Maximum torque recommendation</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
We recommend maximum torque not exceed 35 ft-lb for all P60 Series Gearboxes. It is possible to mount motors that will exceed this in higher gear reductions. Higher reduction gearboxes should be utilized primarily for speed reduction. Designs utilizing a P60 gearbox / motor combination that will exceed 35 ft-lb should include a method of limiting torque to prevent damage to the gearbox.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Physical Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Planetary</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reduction</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25.92:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stages</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 - 5:1, 5:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Material </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Steel</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.0oz (227g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.9in. (48.3mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width (Square) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5in. (38.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.50in. (12.7mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5in. (38.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Key </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.125in. (3.2mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft End Tap </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">#10-32</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes (8) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">#10-32</font></td>
</tr>
</table>

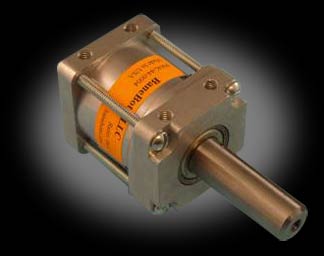

BaneBots P60 Gearbox, RS-540/550 Mount, 26:1
This 26:1 gearbox will mount one RS-540, RS-545, RS-550, RS-555 or similar motor. MOTOR NOT INCLUDED - Motor must be purchased separately.

$64.99
Robot MarketPlace - BaneBots P60 Gearbox, RS-540/550 Mount, 26:1

Motors
    BaneBots Gearboxes

BaneBots P60 Gearbox, RS-540/550 Mount, 26:1
Part# 0-P60K-55-0004
