0-EFLM1205 Park 370 Outrunner EFL-370-1360 Brushless Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
future of small electric motors is here. This is serious power in
a tiny package. The power of an outrunner motor in a very affordable
price. This thing will blow you away at it's small size (only 1.6
ounces) yet with undeniable power! Awesome torque- in most cicrumstances,
you won't need to use a gearbox! Use as an upgrade where you may
have used a speed 280 or 370. </font></p>

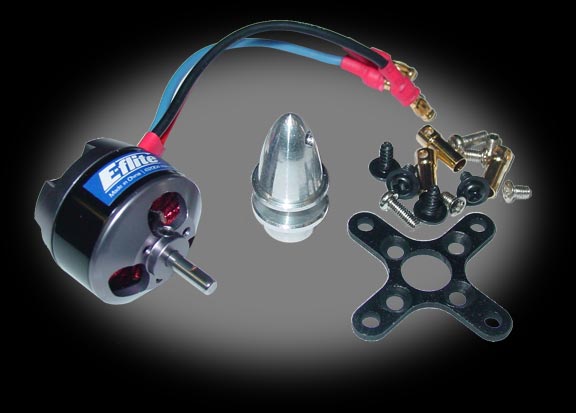

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Park 370
motor package <a href="htttp://robotcombat.com/products/images/store_eflm370motor_lg.jpg">includes
several extras</a>: The motor, Motor mount, prop adapter, hardware
and gold bullet connectors all included! </font></p>

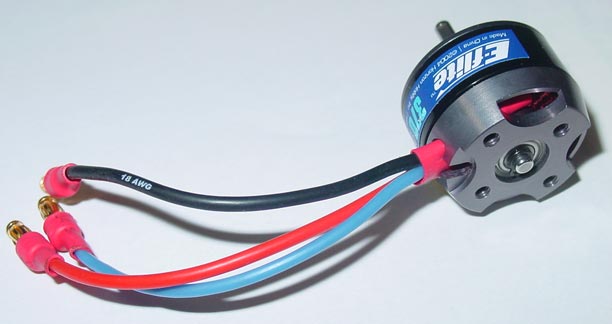

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="images/store_eflm370_rear.jpg">Rear view
photo.</a></font></p>
<table width="250" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="2"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Slotted
12-pole outrunner design </font></td>
</tr>
<tr>
<td colspan="2"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">External
rotor design with front shaft for easy mounting</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Model
Number </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">EFLM1205</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7.2
- 14.4 V </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1360</font><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">
rpm per V <br>
(over 16,000 at 12V!)</font></p></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Current</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1-13A
nominal, 18A max. </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.10</font><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">&quot; (28mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.98</font><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">&quot; (25mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.6oz
(45g) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
size </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3mm</font></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
motors require special Brushless controllers to work properly, we
highly recommend combining this motor with our <a href="0-PHX25.html">Phoenix-25
controller</a>.</font></p>
