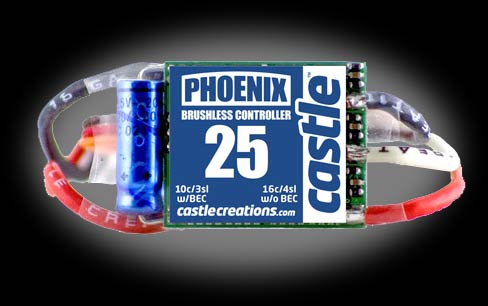

0-PHX25 Phoenix 25 Brushless Speed Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
Phoenix-25 Brushless ESC is the ideal match for <a href="motors_brushless.html">brushless
motors</a> that
draw up to 25-40 amps. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Please
note- this single-channel speed controller will ONLY work with brushless
motors, it will NOT work for regular motors! See the User
Guide for complete specifications. Note that this controller
is fully programmable with the optional <a href="0-PHXUSB.html">Phoenix
Link Adapter</a>.</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Operating
Voltage </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6-18V</font></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Continuous</font>
</div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">25
amps</font> </div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Surge</font>
</div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">40
amps</font> </div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Switching
Rate</font> </div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7,000
Hz</font> </div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Resistance</font>
</div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0065
Ohms</font> </div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Brake</font>
</div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes</font>
</div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Low
Voltage Cut-off</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Programmable
with <a href="0-PHXUSB.html">Phoenix Link</a> </font></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Reversible</font>
</div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Yes
- change any two wires</font> </div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Size</font>
</div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.08
x 0.91 x 0.16 in.</font> </div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight
(with wires)</font> </div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.6
oz. (17g)</font> </div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Connectors</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Standard
JR/Hitec style</font></td>
</tr>
</tbody>
</table>
