0-EFLM1130 Park 250 Brushless Outrunner Motor 2200Kv <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
is one of the smallest brushless motors we've seen! Great for models
and robots where space and weight are limited, but you need as much
power as possible.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ideal
for small models and miniature combat robots! Tons of power in a
very small brushless motor. High quality construction with ball bearings
and hardened steel shaft. Extremely quiet and lightweight- half an
ounce is all! </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Includes
mount, mounting hardware and 2mm gold BL connectors. </font></p>
<br>
<table width="250" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="2"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Size:
upgrade for 180-size motors </font></td>
</tr>
<tr>
<td colspan="2"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">External
rotor design with front shaft for easy mounting</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Model
Number </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">EFLM1130</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6.0
- 8.4 V </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2200
rpm/V (nearly 18,500 at 8.4V!) </font></p></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Current</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1-7A
nominal, 8A max. </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.867&quot; (22mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.90&quot; (23mm) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.5 oz
(14g) </font></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
motors require special Brushless controllers to work properly, we
highly recommend combining this motor with our <a href="0-PHX10.html">Phoenix-10
controller</a>.</font></p>

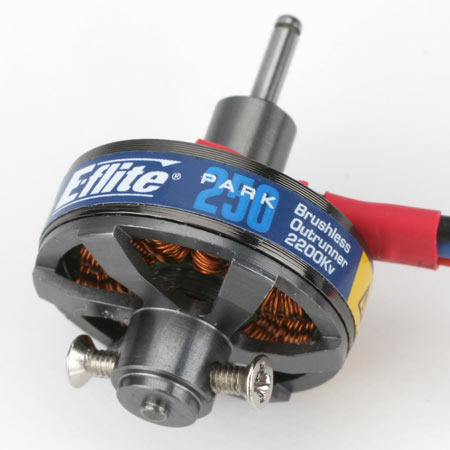

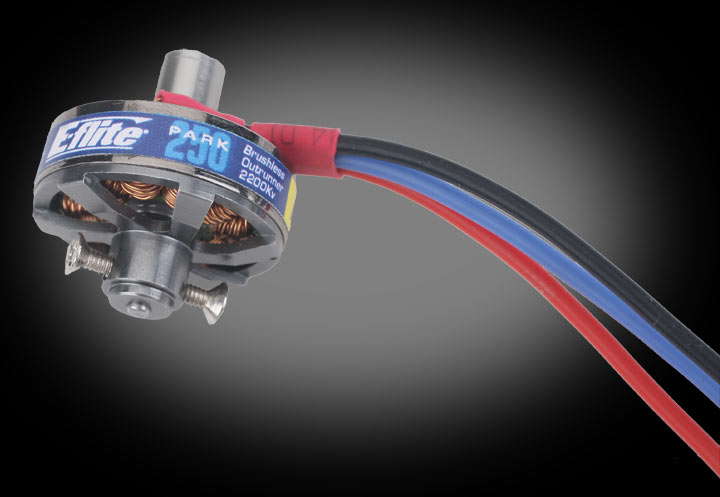

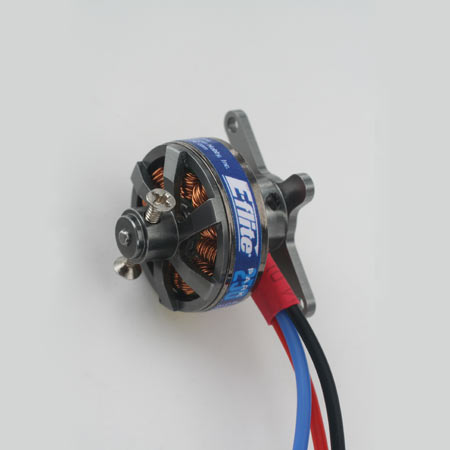

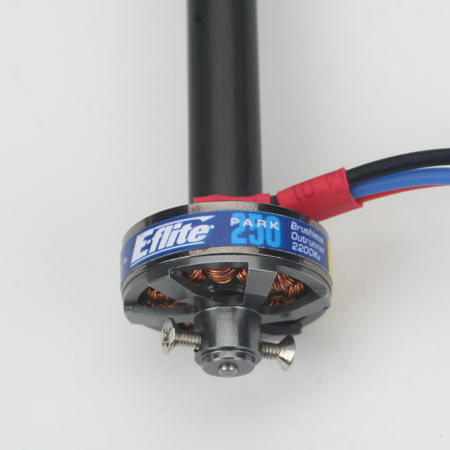

Park 250 Brushless Outrunner Motor 2200Kv
Ideal for small models and miniature combat robots, there is tons of power in this very small brushless motor.

$31.99
Robot MarketPlace - Park 250 Brushless Outrunner Motor 2200Kv

Motors
    Motors - Brushless


Click photo to enlarge.

Park 250 Brushless Outrunner Motor 2200Kv
Part# 0-EFLM1130
