Robot MarketPlace - Equals Zero Designs DeWut?! 3 Speed Gearmotor Kit

DeWalt transmissions and motors have been staples in robotic drivetrains for many years. But like any integrated consumer product, the gearbox itself is oddly shaped, not attached to the motor, and its output shaft is a custom irregular polygon! What could you possibly do?

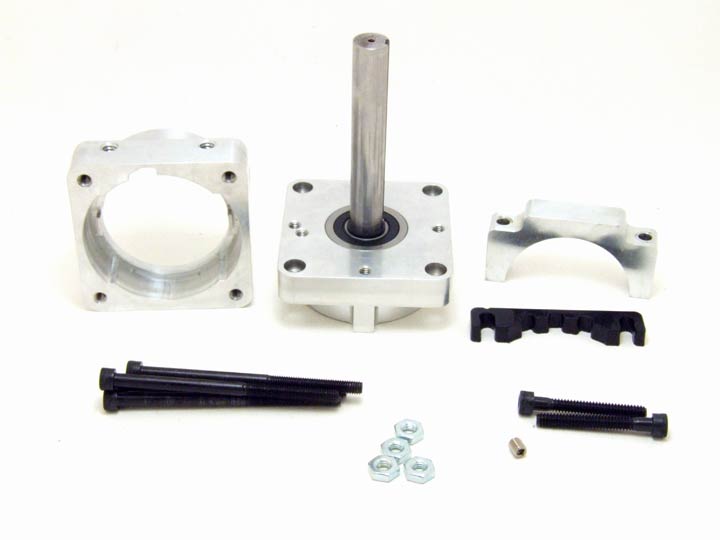

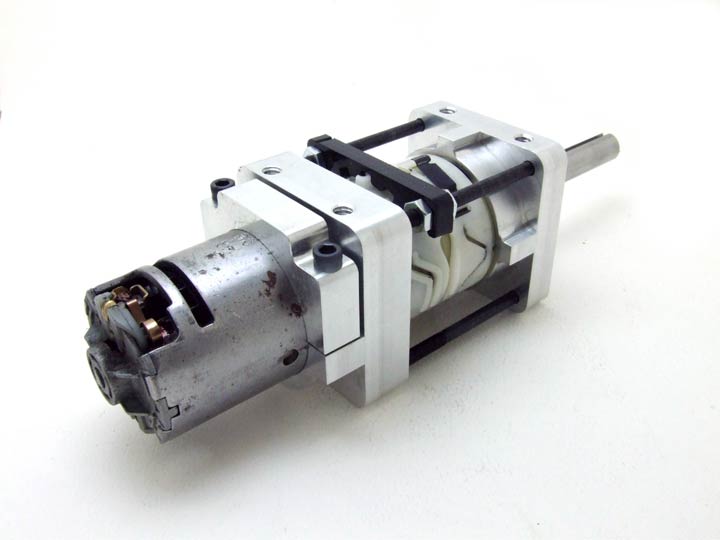

This mounting kit allows the conversion of a DeWalt 397892 series 3-speed transmission and the DeWalt 396505 series 12, 14.4, or 18 volt motor into a finished, ready-to-use gearmotor with 3 selectable speeds, a 1/2in. keyed output shaft riding in dual ball bearings, and adjustable torque clutch setting using the existing gearbox clutch. All you need to do is add a compatible "new style" DeWalt motor!

Features
Compatibility with DeWalt 396505 and 629151 series motors, 397892 transmission
All 6061 billet construction from the front gearbox mounting face to the motor mounting clamp, with 12 mounting holes on 3 different faces
A574 (Grade 8 strength) socket cap screw tie rods and motor mounting screws
1566 steel 1/2in. keyed output shaft with ANSI standard 1/8in. keyway
Dual 1/2in. bearings for direct attachment to loads - no need for an external bearing
Integrated torque clutch adjustment via tightening a single screw, from almost no torque to fully locked

Specs
Ratios	Low: 51.2:1 Medium: 17.1:1 High: 12.8:1
Output Speed	Low: 450 RPM Medium: 1450 RPM High: 2000 RPM
Dimensions	2.5in. square x 6.1in. long (not including shaft)
Weight	2.9 lb with shaft
Case Material	6061 aluminum
Output Shaft	1/2in. with 1/8in. keyway x 3in.
*These are typical ratings assuming an 18 volt DeWalt 396505 type motor.
