Click photo to enlarge, double-click to shrink.

$49.99
QTY
Stock Status: In Stock




Dimensions:

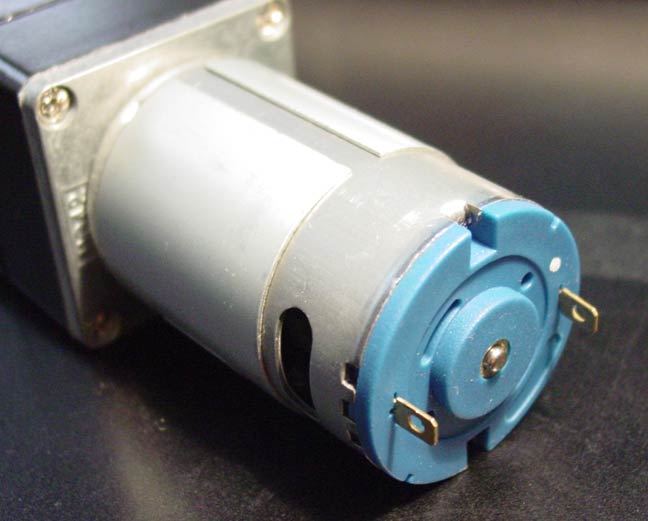

Rear View:

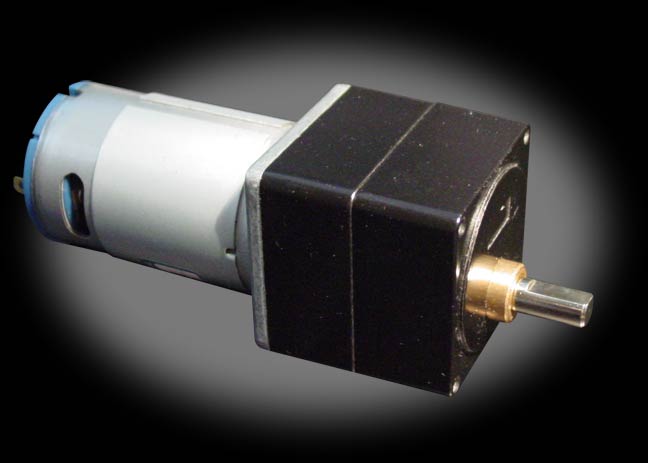

HG20 Geared Motor 20:1
Part# 0-BHG20

For years, there has been a void in the realm of conveniently-priced gearmotors for the 12-15 pound robot weight class. Look no further! The HG-series gearmotors are beefy enough for the most demanding 15 pound robots, and possibly even more- yet they won't break your budget! Perfct for directly-attaching your wheels right to the ouput shaft. Available in two different gear ratios, so you can choose either a higher speed 20:1 or a higher torque 62:1 option.

The gearbox has four face-mount threaded holes. Gearbox is offset-shaft, spur gear type, and is sealed, maintenance-free.

These motors are meant to be run at 12V, but we've tested them to run fine up to 24V.


HG20 model
6V
12V
No load speed
380 rpm
510 rpm
Amps @ nominal
0.5A
0.6A
Stall current
15A
25A
Stall torque
240 oz-in
355 oz-in
Nominal Voltage
12V (can be run higher)
Gear ratio
20:1
Weight
16.6 oz
Diameter
0.86"
Gearbox Diameter
1 5/8" square
Length
4.0" / 102mm
Shaft diameter
7 mm - with flat
Shaft length
15 mm
