DISCONTINUED

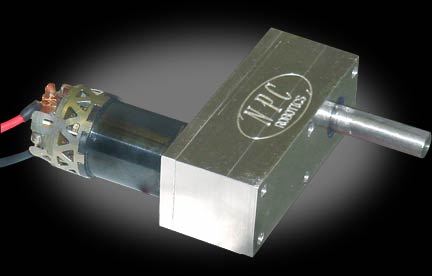

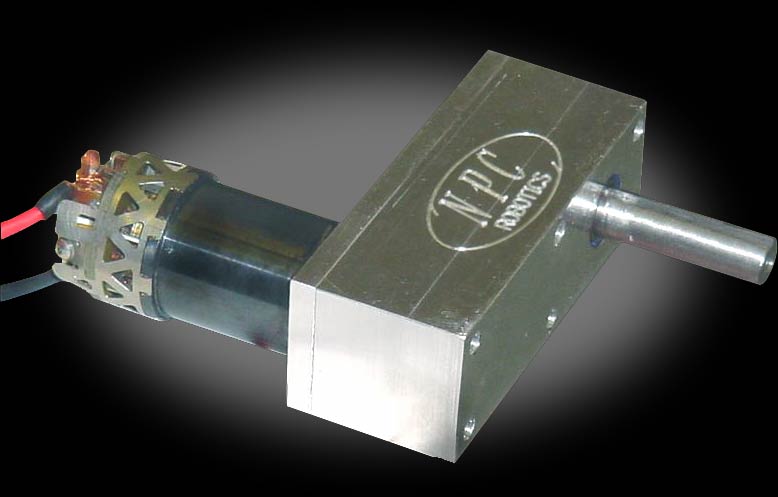

NPC ThinGap motor/gearbox combos

You're simply not going to find more power in a motor this small. This is a perfect solution for driving bots up to 60 pounds, or more if you use multiples of these motors.

- 10-14 volts
- 2.07 pounds for entire combo as pictured!
- only 1.5" tall
-.5" shaft with 1/8" keyway
- coreless armature
- about 1/2 horsepower!
- your choice of the TG3235HS or TG3242HT motor (see below)
- your choice between a 13:1 high speed gear reduction, or 26:1 high torque reduction
- Great when used with the 40W wheels

  TG3235HS
Motor 		TG3242HT
Motor
13:1 Gearbox 1700rpm,
130 in-lb*
222 Amps*
1350rpm,
90 in-lb*
128 Amps*
26:1 Gearbox 846rpm
222 Amps*

675rpm,
180 in-lb*
128 Amps*

*Ratings at stall

Video test with 4 of these motors in a bot:

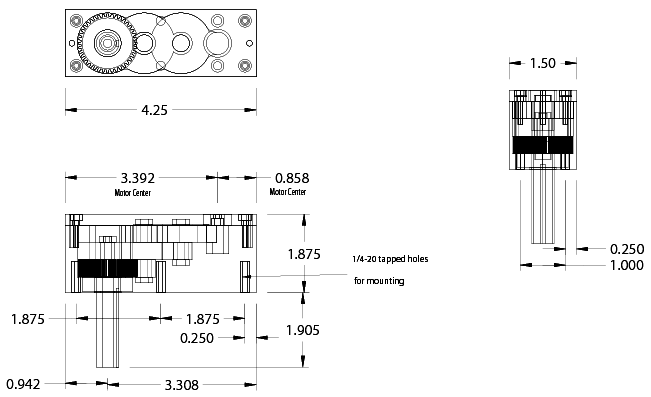

Gearbox Measurements :


DISCONTINUED

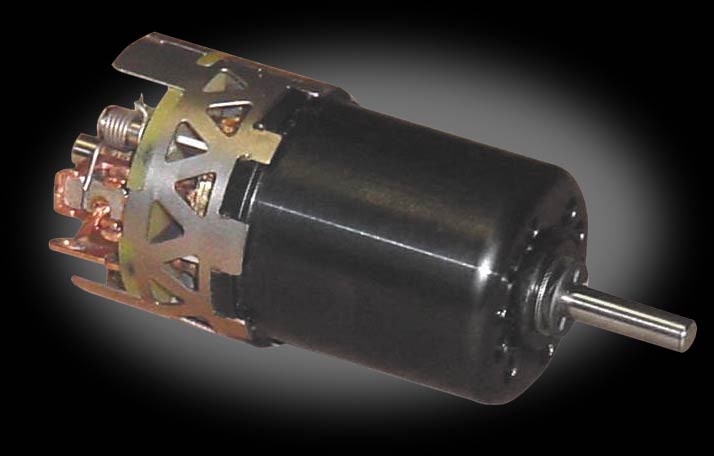

NPC-3235HS (High Speed) ThinGap motor

This incredible motor is going to knock your socks off! You won't believe the power you can get from a motor this small! Check out these specs:

Operating Voltage 10-14 VDC
Max Continuous Power 300 w
Max Continous Torque 23 oz-in.
Max Efficiency 82%
No load speed 22,000rpm @ 12V
Torque constant 0.72 oz-in./sqrt (watt)
No load current 2.7 amps
Max Continuous current 32.6 amps
Magnet Material Neodymium
Weight 10 oz
Length 2.60"
Diameter 1.35", max 1.5"
Shaft 5mm dia x .875"



More Specifications :

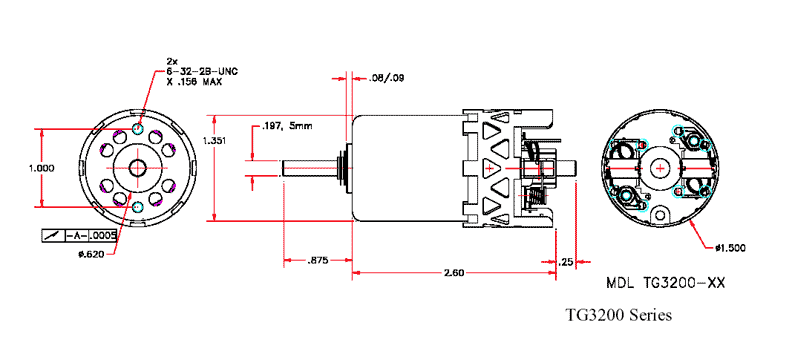

Measurements :


DISCONTINUED

NPC-3242HT (High Torque) ThinGap motor

This incredible motor is going to knock your socks off! You won't believe the power you can get from a motor this small!

Operating Voltage 10-14 VDC
Max Continuous Power 260 w
Max Continous Torque 23 oz-in.
Max Efficiency 88%
No load speed 17,700rpm @ 12V
Torque constant 0.87 oz-in./sqrt (watt)
No load current 1.9 amps
Max Continuous current 26.5 amps
Magnet Material Neodymium
Weight 10 oz
Length 2.60"
Diameter 1.35", max 1.5"
Shaft 5mm dia x .875"



More Specifications :

Measurements :

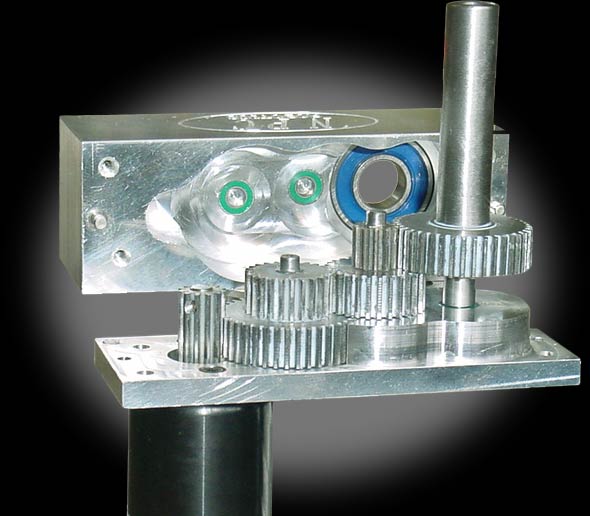

Gearbox shown in exploded view, it will come to you already assembled.

DISCONTINUED

NPC-GB3213 13:1 gearbox

This is the same gearbox used in the above NPC combos, but no motor is included.

Includes:

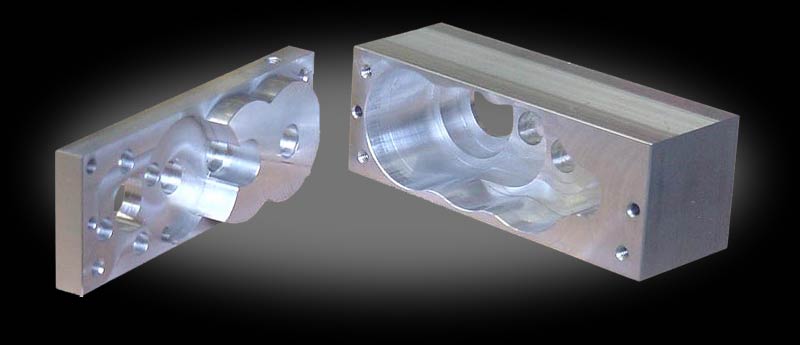

- CNC Machined Gearbox
- Gear Set for 13:1 or 26:1 reduction
- Installed bearings
- Installed shafts and keys
- Pre-Assembled and ready for motor
