BATTLEPACK ULTRAPACKS BATTERY PACKS

These Heavy Duty packs are hand built for high current, using Silicone output wires. They are protected top and bottom with heat resistant foam or Nomex, and they are wrapped in two layers of shrink wrap. You may also choose to have your packs constructed with or without the Heat-Saver Rings.

Combat battry packs are constructed using braided copper wire or solid tabs, and are hand-soldered using Metcal equipment.

All these packs are made-to-order and may take 7-10 days to be shipped. Do not wait to the last minute to order your BattlePacks!


3600mah Soldered Ultra BattlePacks- C-Size cells
Details on the 3600 cells used in this pack


soldered connections :
wire size:
connectors:
Heat-Saver rings :
Teflon Wrap :
QTY
We HIGHLY recommend the use of Heat-saver rings with ALL packs! If you choose no rings, you risk damage to your pack!

PN-3600-12 UltraPacks
12V C cells (x10)
80 amp continuous
5.125W x 2.2H x 2.0D (without rings)
5.75W x 2.2H x 2.25D (with rings)
2 lbs

PN-3600-18 UltraPacks
18V C cells (x15)
80 amp continuous
3 lbs

PN-3600-24 UltraPacks
24V C cells (x20)
80 amp continuous
5.125W x 2.2H x 4.0D (without rings)
5.75W x 2.2H x 4.5D (with rings)
4 lbs

PN-3600-36 UltraPacks
36V C cells (x30)
80 amp continuous
(5x6 cell orientation standard, if you want 3x10 orientation, please specifiy in the notes on checkout)
6 lbs



All these packs are made-to-order and may take 7-10 days to be shipped. Do not wait to the last minute to order your BattlePacks!

3300mah NiMh Soldered Ultra BattlePacks- Sub C-Size cells
Details on the 3300 cells used in this pack

soldered connections :
wire size:
connectors:
Heat-Saver rings
:
Teflon Wrap :
QTY
We HIGHLY recommend the use of Heat-saver rings with ALL packs! If you choose no rings, you risk damage to your pack!

PN-GP3300N-12 UltraPacks
12V Sub-C cells (x10)
45 amp continuous
4.528W x 1.901H x 1.811D (without rings)
5.153W x 1.901H x 2.061D (with rings)
1.37 lbs

PN-GP3300N-18 UltraPacks
18V Sub-C cells (x15)
45 amp continuous
size depends on configuration
(18V packs are available in 7x8, 5x3, or 15 cell flat packs - please specify which configuration you want when ordering by stating in the "Special Instruction" field)
2.05 lbs

PN-GP3300N-24 UltraPacks
24V Sub-C cells (x20)
45 amp continuous
4.528W x 1.901H x 3.622D (without rings)
5.153W x 1.901H x 4.122D (with rings)
2.73 lbs

PN-GP3300N-36 UltraPacks
36V Sub-C cells (x30)
45 amp continuous
4.1 lbs

All these packs are made-to-order and may take 7-10 days to be shipped. Do not wait to the last minute to order your BattlePacks!

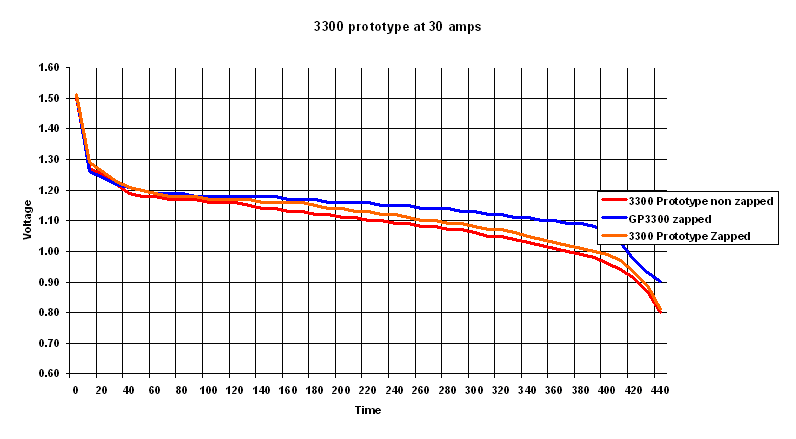

3300mah BP NiMh Soldered Ultra BattlePacks- Sub C-Size cells Details on the 3300 cells used in this pack

soldered connections :
wire size:
connectors:
Heat-Saver rings
:
Teflon Wrap :
QTY
We HIGHLY recommend the use of Heat-saver rings with ALL packs! If you choose no rings, you risk damage to your pack!

PN-BP3300N-12 UltraPacks
12V Sub-C cells (x10)
45 amp continuous
4.528W x 1.901H x 1.811D (without rings)
5.153W x 1.901H x 2.061D (with rings)
1.37 lbs

PN-BP3300N-18 UltraPacks
18V Sub-C cells (x15)
45 amp continuous
size depends on configuration
(18V packs are available in 7x8, 5x3, or 15 cell flat packs - please specify which configuration you want when ordering by stating in the "Special Instruction" field)
2.05 lbs

PN-BP3300N-24 UltraPacks
24V Sub-C cells (x20)
45 amp continuous
4.528W x 1.901H x 3.622D (without rings)
5.153W x 1.901H x 4.122D (with rings)
2.73 lbs

PN-BP3300N-36 UltraPacks
36V Sub-C cells (x30)
45 amp continuous
4.1 lbs

All these packs are made-to-order and may take 7-10 days to be shipped. Do not wait to the last minute to order your BattlePacks!

3000mah Soldered Ultra BattlePacks- C-Size cells
Details on the 3000 cells used in this pack

NiCad UltraPack Size Chart (no rings)


soldered connections :
wire size:
connectors:
Heat-Saver rings
:
Teflon Wrap :
QTY
We HIGHLY recommend the use of Heat-saver rings with ALL packs! If you choose no rings, you risk damage to your pack!

PN-3000-12 UltraPacks
12V C-size cells (x10)
80 amp continuous
5.125W x 2.2H x 2.0D (without rings)
5.75W x 2.2H x 2.25D (with rings)
2 lbs

PN-3000-18 UltraPacks
18V C-size cells (x15)
80 amp continuous
3 lbs

PN-3000-24 UltraPacks
24V C cells (x20)
80 amp continuous
5.125W x 2.2H x 4.0D (without rings)
5.75W x 2.2H x 4.5D (with rings)
4 lbs

PN-3000-36 UltraPacks
36V C cells (x30)
80 amp continuous
(5x6 cell orientation standard, if you want 3x10 orientation, please specifiy in the notes on checkout)
6 lbs

All these packs are made-to-order and may take 7-10 days to be shipped. Do not wait to the last minute to order your BattlePacks!
NiMh UltraPack Size Chart (no rings)
2600mah NiMh Soldered Ultra BattlePacks- Sub C-Size cells These amazing 2600 cells can outperform most other NiMh cells, and even many NiCads!


soldered connections :
wire size:
connectors:
Heat-Saver rings
:
Teflon Wrap :
QTY

We HIGHLY recommend the use of Heat-saver rings with ALL packs! If you choose no rings, you risk damage to your pack!


PN-2600N-12
UltraPacks

12V Sub-C cells (x10)
60 amp continuous
4.528W x 1.901H x 1.811D (without rings)
5.153W x 1.901H x 2.061D (with rings)
1.32 lbs

PN-2600N-18 UltraPacks
18V Sub-C cells (x15)
60 amp continuous
size depends on configuration
(18V packs are available in 7x8, 5x3, or 15 cell flat packs - please specify which configuration you want when ordering by stating in the "Special Instruction" field)
2.25 lbs

PN-2600N-24 UltraPacks
24V Sub-C cells (x20)
60 amp continuous
4.528W x 1.901H x 3.622D (without rings)
5.153W x 1.901H x 4.122D (with rings)
2.64 lbs

PN-2600N-36 UltraPacks
24V Sub-C cells (x30)
45 amp continuous
4.1 lbs

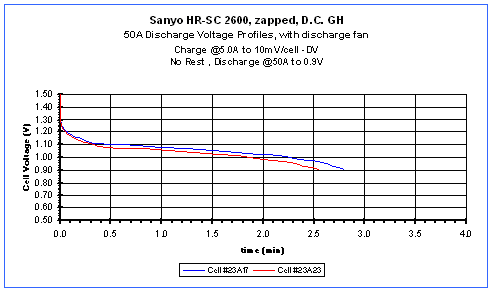

2600 Cell stats at 50A:

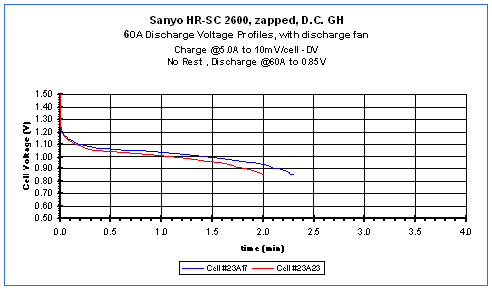

2600 Cell stats at 60A:

All these packs are made-to-order and may take up to 7 days to be shipped. Do not wait to the last minute to order your BattlePacks!
2400mah NiCad Soldered Ultra BattlePacks- Sub C-Size cells
Details on the 2400 cells used in this pack


soldered connections :
wire size:
connectors:
Heat-Saver rings :
Teflon Wrap :
QTY

We HIGHLY recommend the use of Heat-saver rings with ALL packs! If you choose no rings, you risk damage to your pack!

PN-CP2400R-12 UltraPacks
12V Sub-C cells (x10)
60 amp continuous
4.528W x 1.901H x 1.811D (without rings)
5.153W x 1.901H x 2.061D (with rings)
1.32 lbs

PN-CP2400R-18 UltraPacks
18V Sub-C cells (x15)
60 amp continuous
1.98 lbs

PN-CP2400R-24 UltraPacks
24V Sub-C cells (x20)
60 amp continuous
4.528W x 1.901H x 3.622D (without rings)
5.153W x 1.901H x 4.122D (with rings)
2.64 lbs

PN-CP2400R-36 UltraPacks
36V Sub-C cells (x30)
60 amp continuous
(5x6 cell orientation standard, if you want 3x10 orientation, please specifiy in the notes on checkout)
3.96 lbs

All these packs are made-to-order and may take 7-10 days to be shipped. Do not wait to the last minute to order your BattlePacks!
