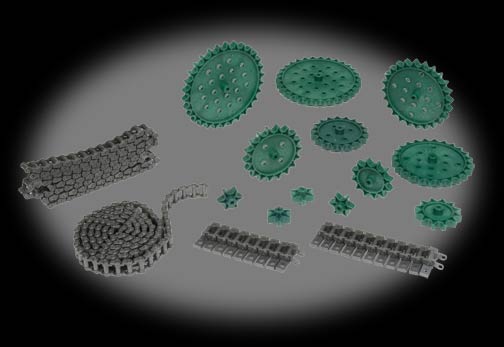

VEX-276-2252 VEX Robotics High Strength Sprocket and Chain Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This kit provides larger size chain and sprockets designed for use with the VEX Robotics Design System. These reinforced sprockets and chain can be used just like the VEX Sprocket and Chain Kit but can withstand higher stresses and lift heavier loads. VEX High Strength Chain is the same pitch as VEX Tank Tread. The components from this kit are compatible with all VEX Tank Tread components. Also use included "Attachment Links" to attach structural components to your chain. Use this kit for any application where regular chain just won't cut it! </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
High Strength Design - up to 50 lbs<br />
12 Sprockets in 5 Sizes<br />
54" of Chain Links </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Delrin Plastic </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Master Links </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Every link can act as a master link to make chains of any length </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tensile Strength </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Approximately 50 lbs. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chain Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">140 links = 54in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chain Width </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Links are 0.57in. wide, attatchment links are 1.5in. wide </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.175in. diameter </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Kit Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Strength 6-tooth Sprocket (~0.97in. OD) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Strength 12-tooth Sprocket (~1.69in. OD) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Strength 18-tooth Sprocket (~2.43in. OD) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Strength 24-tooth Sprocket (~3.16in. OD) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Strength 30-tooth Sprocket (~3.90in. OD) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">140 </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Strength Chain Links </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chain Attatchment Links </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Inventor's Guide Insert </font></td>
</tr>
</table>
