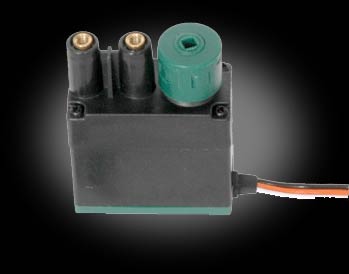

VEX-276-2162 VEX Robotics Servo Kit <p> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Precision
is key. Gain greater control of robot movements with a 100&deg; rotation
servo motor. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Servo motor
gives you greater control of motion. This servo is made to mate perfectly
with the shafts of the Vex Robotics System. </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rotation</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100 degrees </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.5 in-lbs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Pulse Width </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-2ms</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mix/Max Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.4V - 15V(Servo life will be reduced operating outside the VEX Controller range of 5.5V - 9.0V)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.11 lbs. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wiring</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Black - ground; Orange - (+) power; White - PWM Control signal</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Draw </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20mA to 1.5A per servo </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">List of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VEX Servo Motor </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VEX Servo Motor Gear Set (4 total gears, 1 replacement for each gear inside) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-32 x 1/4in. Screws </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-32 x 1/2in. Screws </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Clutch Post </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Inventor's Guide Insert </font></td>
</tr>
</table>
