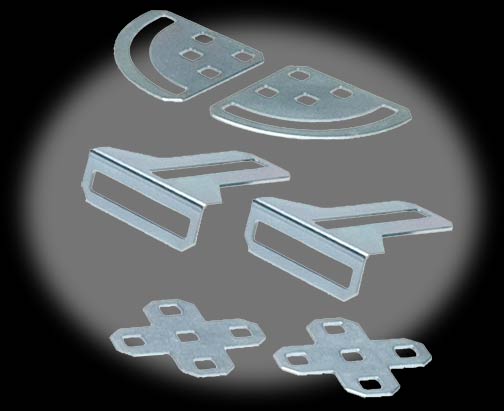

VEX-276-1110 VEX Robotics Gusset Pack <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Six gussets in one pack</font></p>

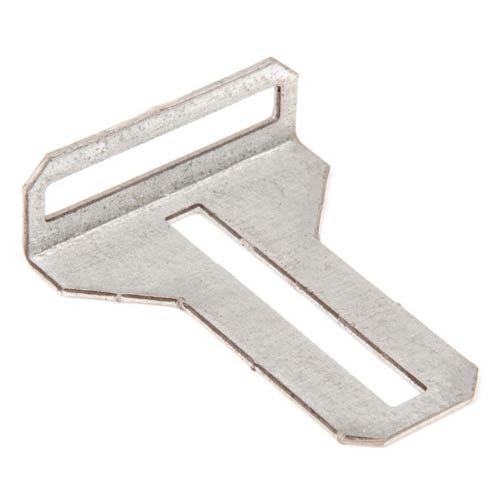

<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">(2) Angle Gussets</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Bent gusset for strengthening "T" joints. Slots on both main flanges allow for adjustment on two axis. Can also be used as a motor mount.</font></p>

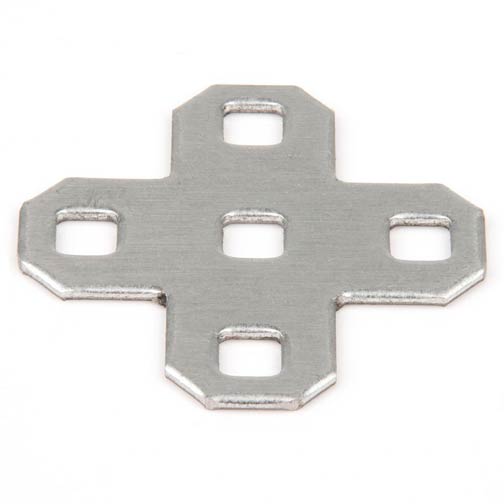

<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">(2) Plus Gussets</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Generic gusset for strengthening flat joints. Can be easily cut into a "T" gusset or an "L" gusset. </font></p>

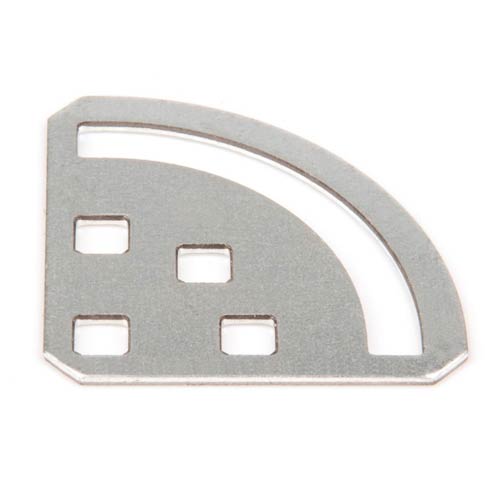

<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">(2) Pivot Gussets</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Bracket allows parts to be connected at any angle from 0 to 90 degrees. Can also be used as a corner gusset. </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal Thickness </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.046" (1.17mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Finish</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Zinc Plated </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hole Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.182 square </font></td>
</tr>
</table>
