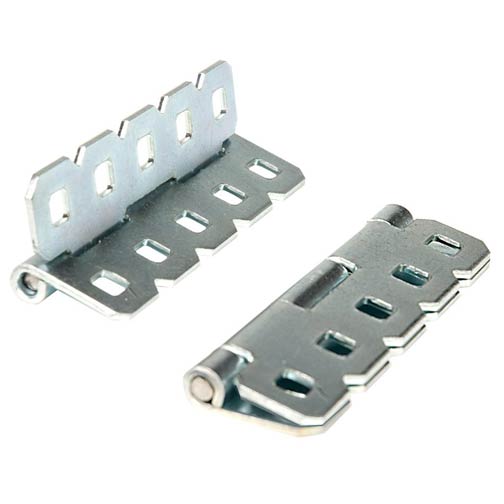

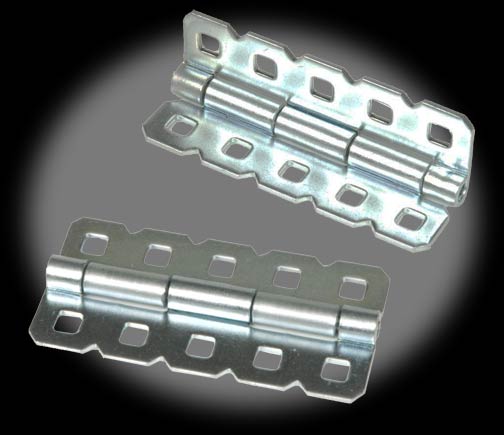

VEX-275-1272 VEX Robotics Hinges, 2-pack <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VEX Hinges provide a pivoting joint between two pieces of VEX structural components. These hinges are about 2.5" long and 1.3" wide. Each section of the hinge has a mounting surface about 0.5" wide, and includes (5x) VEX Square holes on the standard VEX 1/2" pitch. The hinges pivot approximately 265-degrees. Sold in packs of 2.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal Thickness </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.046" (1.17mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Finish</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Zinc Plated </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hole Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.182 square </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5" long x 1.3" wide.</font></td>
</tr>
</table>
