VEX-275-1097 VEX Robotics Aluminum Structure Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use VEX Aluminum pieces to lighten the total weight of a robot or mechanism while still keeping it strong.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Compatible with all VEX Motion and Structure components.<br />
Available in bundle kits or in single part multi-packs</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Aluminum, 5052H32</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Thickness </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.064in (1.6mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hole Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.182 square (Vex standard)</font></td>
</tr>

<tr>

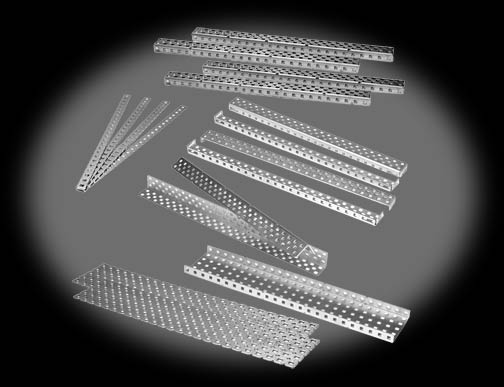

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kit Contents </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(1) Aluminum Chassis 25x25x2<br />
(4) Aluminum C-Channel 1x2x1x25<br />
(1) Aluminum C-Channel 1x5x1x25<br />
(2) Aluminum Plate 5x25<br />
(4) Aluminum Bar 1x25</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Aluminum Plate 5x25: 0.146 lbs<br />
Aluminum Bar 1x25: 0.030 lbs<br />
Aluminum Chassis: 25x25x2: 0.552 lbs<br />
Aluminum C-Channel 1x2x1x25: 0.116 lbs<br />
Aluminum C-Channel 1x5x1x25: 0.211 lbs</font>
</td>
</tr>
</table>
