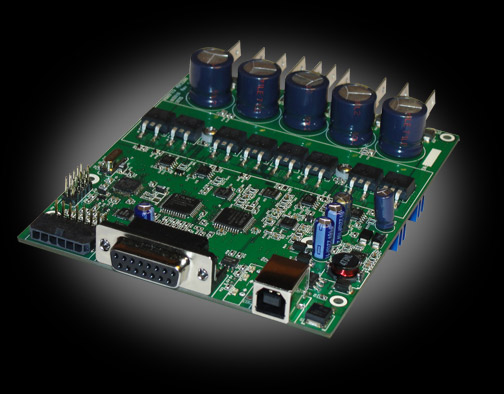

RoboteQ MDC2250 Dual 60A Brushed DC Motor Controller
Roboteq's MDC2250 controller is an easy to use dual channel 60A motor controller that can accept commands from RC radio, Analog joystick, wireless modem, PC or microcomputer.

$385.00

Roboteq's MDC2250 controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary cables and hardware, and is ready to use in minutes.

The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The MDC2250 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor. Numerous safety features are incorporated into the controller to ensure reliable and safe operation.

The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Power Stage
Operating Voltage	7V to 50V DC
Number of Channels	2
Max Current 1 min 3 min 1 hour	2 x 60A 2 x 55A 2 x 50A
Surge Current	>100A
ON Resistance	6 mOhm
Current Limiting	By automatic power output reduction above user preset level
Synchronous Rectification	Yes - Allows regenerative braking
Temperature Protection	Automated current limit reduction starting at 70 degC (175 degF) heat sink temperature
Voltage Protection	Output shut off below 5V and above max. voltage - user adjustable
Power Wiring	0.25in. Faston Tabs
Command
R/C Inputs	1.0ms - 1.5ms center - 2ms, adjustable
Serial Interface	RS232 Standard and TLL Serial. 115200 bauds
USB Interface	12-Mbit/s, type B connector
Analog Interface	0V - 2.5V center - 5V. Adjustable
Input Corrections	Ch1 & Ch2 mixing for tank steering. Programmable deadband. 6 Exponent & Logarithmic command curves.
Input/Outputs
Optical Encoder Inputs	4 inputs for 2 incremental encoders
Analog Inputs	Up to 4 inputs, 10-bit resolution
Digital Outputs	2 output, 24V 1A max
Digital Inputs	Up to 6 general purpose inputs
Pulse Inputs	Up to 5 Pulse Length, Duty Cycle, or Frequency inputs
5V Supply Output	100mA max. for Radio, Encoders or other devices
Operating Modes
Open Loop Speed	Forward & Reverse Speed Control. Separate or Mixed.
Closed Loop Speed	Using Encoder or Tachometer feedback & PID
Position Mode	Using Potentiometer, PWM sensor, or encoder & PID
Controller Configuration	Jumper-less using PC utility
MicroBasic Scripting
Max. Program Size	~1500 lines of Basic-language code, 1000 user variables
Execution Speed	Higher than 50,000 lines per second
Physical
Operating Temperature	-40 to +80 degC heat sink temperature
Enclosure	Open frame
Cooling	Conduction plate
Controller Size	5.5 x 5.5 x 1 in. (140 x 140 x 30mm)
Cables	10 in. (25cm) RC cable to Radio
Weight	7.0 oz.
