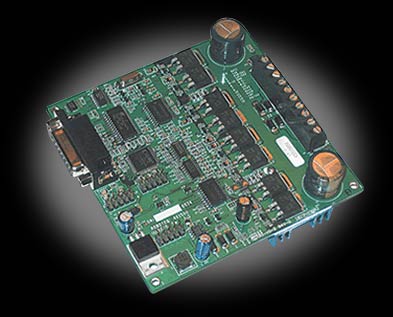

RoboteQ BL1500 Brushless Single Channel Motor Controller
Roboteq's BL1500 controller is designed to convert commands received from a R/C radio, Analog Joystick, wireless modem, or microcomputer into high voltage and high current output for driving one Brushless motor.

$275.00

Roboteq�s BL1500 controller is designed to convert commands received from a R/C radio, Analog Joystick, wireless modem, or microcomputer into high voltage and high current output for driving one Brushless motor. Designed for maximal ease-of-installation, it is delivered with all necessary cables and hardware and is ready to use in minutes.

The controller includes a header with 3 Hall Sensor inputs. The sensors are built into the motor and give position information of the rotor relative to the magnets. The controller uses that position information in order to energize the right motor winding and thus creating rotation. The controller will not work with Sensorless Brushless DC Motors.

The motor may be operated in open or closed loop speed mode. Using low-cost position sensors, they may also be set to operate as heavy-duty position servos. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq

Power Stage
Operating Voltage	12V to 40V DC
Number of Channels	1
Max Current: 30s 1min 3min 1hr+	50A 45A 40A 30A
Surge Current	>250A
MOSFETs per Channel	6
ON Resistance	<10 mOhm
Synchronous Rectification	Yes - allows regenerative braking
Current Limiting	By automatic power output reduction according to user preset limit and temperature
Temperature Protection	Automated current limit reduction starting at 175F (80C) case temperature
Voltage Protection	Output shut off below 12V and above 43V
Power Wiring	Terminal strip - 12g wire max
Command
R/C Inputs	1 + 1 accessories (1.0ms - 1.5 ms center - 2ms, Adjustable)
Serial Interface	RS232, 9600 bauds
Analog Interface	One input (0V - 2.5V center - 5V)
Input Corrections	Programmable deadband. Four Exponent and Logarithmic command curves.
Input/Outputs
Analog Inputs	Four inputs, 8-bit resolution
Digital Outputs	One output, 24V 2A max
Digital Inputs	Up to three general purpose inputs
5V Supply Output	100mA max for radio or other devices
Operating Modes
Open Loop Speed	Forward and Reverse speed control, seperate or mixed
Closed Loop Speed	Use tachometer on analog inputs and PID
Position Mode	Use potentiometer on analog inputs and PID
Controller Configuration	Jumper-less using PC utility
Physical
Operating Temperature	-40 to +85C case temperature
Enclosure	Unenclosed, board level
Cooling	Heatsink
Controller Size	4.2 x 4.2 x 1.5 in. including heatsink
Cables	10 in. RC rable to radio. 4ft. RS232 cable for PC connection
Weight	3 oz.
