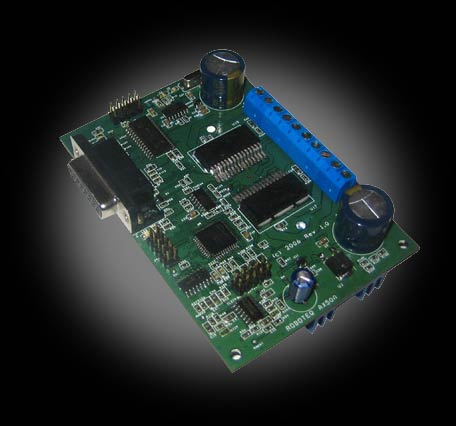

RoboteQ ax500 Single-Channel Motor Controller
Identical to the ax500 Dual Channel except that the output transistors of both channels are perfectly synchronized.

$99.00

This product has been discontinued. It has been replaced by the RoboteQ SDC2130 Dual 20A Brushed DC Motor Controller.

Roboteq's AX500 controller is designed to convert commands received from a R/C radio, Analog Joystick, wireless modem, or microcomputer into high voltage and high current output for driving one or two DC motors.

The Single Channel controllers are identical to the Dual Channel except that the output transistors of both channels are perfectly synchronized and thus allow the motor output leads to be wired in parallel and thus drive twice the amps into a single load.

Power Stage
Operating Voltage	12V to 40V DC
Number of Channels	1
Max Current: 30s 1min 3min 1hr+	30A 20A 16A 15A
Surge Current	>60A
MOSFETs per Channel	2 x 4
ON Resistance	50 mOhm
Current Limiting	By automatic power output reduction according to user preset limit and temperature
Temperature Protection	Automated current limit reduction starting at 175F (80C) case temperature
Voltage Protection	Output shut off below 8V
Power Wiring	Terminal strip used in pairs. 2 x 14g max cable
Command
R/C Inputs	2 + 1 accessories (1.0ms - 1.5ms center - 2.0ms, adjustable)
Serial Interface	RS232, 9600 bauds
Analog Interface	Two inputs (0V - 2.5V center - 5V)
Input Corrections	Ch1 and Ch2 mixing for tank steering. Programmable deadband. Four exponent and Logarithmic command curves
Input/Outputs
Analog Inputs	Four inputs, 8-bit resolution
Digital Outputs	One output, 24V 1000mA max
Digital Inputs	Three general purpose inputs
Operating Modes
Open Loop Speed	Forward and Reverse speed control, seperate or mixed
Closed Loop Speed	Use tachometer on analog inputs and PID
Position Mode	Use potentiometer on analog inputs and PID
Controller Configuration	Jumper-less using PC utility
Physical
Operating Temperature	-40 to +85C case temperature
Enclosure	Unenclosed, board level
Controller Size	4.2 x 2.9 x 1.5 in., including heatsink
Cables	10 in. RC rable to radio. 4 in. RS232 cable for PC connection
Weight	3oz.
