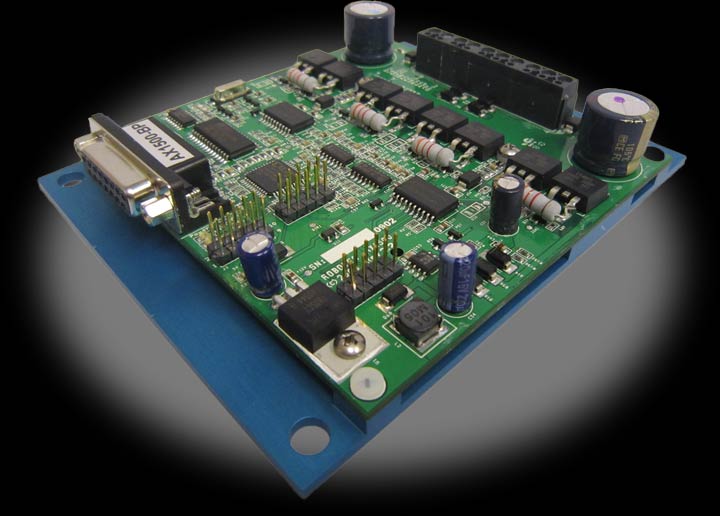

RTQ-AX1500BP RoboteQ AX1500BP 2-Channel Motor Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Roboteq’s AX1500 controller is designed to convert commands received from a R/C
radio, Analog Joystick, wireless modem, or microcomputer into high voltage
and high current output for driving one or two DC motors. Designed for maximal
ease-of-installation, it is delivered with all necessary cables and hardware
and is ready to use in minutes.</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>
<tr>
<td colspan="2" bgcolor="#333333"><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Stage</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating
Voltage</font></div></td>
<td><div align="left">
<p><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">12V to 40V DC </font> </div></td>
</tr>
<tr>
<td> <div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Number
of Channels</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Max
Current:<br>
30s<br>
1min<br>
3min<br>
1hr+</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
40A<br>
35A<br>
30A<br>
30A</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Surge
Current</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">>150A</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">MOSFETs
per Channel</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">ON
Resistance</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">10
mOhm</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Synchronous
Rectification</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes
- allows regenerative braking</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Current
Limiting</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">By
automatic power output reduction according to user preset limit
and temperature</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Temperature
Protection</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Automated
current limit reduction starting at 175F (80C) case temperature</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage
Protection</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Output
shut off below 12V and above 43V</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Power
Wiring</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Terminal
strip. 12g max cable</font></div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#333333"><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Command</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">R/C Inputs</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Two
inputs + 1 accessories (1.0ms - 1.5ms center - 2ms, Adjustable)</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Serial Interface</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RS232, 9600 bauds</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Analog Interface</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Two inputs (0V - 2.5V center - 5V)</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Corrections</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ch1 and Ch2 mixing for tank steering. Programmable deadband.
Four exponent and Logarithmic command curves</font></div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#333333"><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input/Outputs</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Analog Inputs</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Four
inputs, 8-bit resolution</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital Outputs</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">One
output, 24V 1A max</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital Inputs</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Up
to three general purpose inputs</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V Supply Output</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100mA max for radio or other devices</font></div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#333333"><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Modes</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Open Loop Speed</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Forward and Reverse speed control, seperate or mixed</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Closed Loop Speed</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use tachometer on analog inputs and PID</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Position Mode</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use potentiometer on analog inputs and PID</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Controller Configuration</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Jumper-less
using PC utility</font></div></td>
</tr>
<tr>
<td colspan="2" bgcolor="#333333"><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Physical</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Temperature</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">-40 to +85C case temperature</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Enclosure</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unenclosed,
board level</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cooling</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Conduction Plate </font></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Controller Size</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.2 x 4.2 in.</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cables</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10 in. RC rable to radio. 4 in. RS232 cable for PC connection</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></div></td>
<td><div align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.5 lbs</font></div></td>
</tr>
</tbody>
</table>
