RRI-HBRHIGH-01 Renegade Wi-Fi Robot Controller with High Amp Motor Driver <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/phDr9r2KMpk?autoplay=1&rel=0" title="Renegade Wi-Fi Robot Controller - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/RRI-REN-01-overview.jpg" alt="Renegade Wi-Fi Robot Controller - The Robot MarketPlace" /></a></div>
</div>
Renegade is a versatile Wi-Fi operated robot controller featuring 32 fully customizable Input/Output channels. These can be set up and used as general purpose Input/Outputs (GPIOs), RC Servo motor controls, Analog to Digital Converter (ADC) Inputs, or to decode quadrature encoders. Renegade can perform all of these functions while at the same time operating two high current DC motors.</font>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Renegade is easy to setup and use. You can directly connect to Renegade through your wireless network or send customized control commands (UDP) from your phone, laptop, or any other Wi-Fi enabled device. You can communicate with your Renegade through simple, intuitive commands in a host of programming platforms including, but not limited to: C, C++, C#, PYTHON, and MATLAB.</font>
</p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/1ZasHhAK7C4?autoplay=1&rel=0" title="Renegade Robot Operation - The Robot MarketPlace">
<img src="http://www.robotcombat.com/products/videos/data/thumbnails/RRI-REN-01-robot.jpg" alt="Renegade Robot Operation - The Robot MarketPlace" /></a></div>
</div>
The Renegade has been designed around the power of the newest line of dsPIC microcontrollers providing unprecedented processing power and application flexibility. Earlier versions of Renegade have been successfully used in projects ranging from remarkably speedy RC cars, to motor scooters, to cheese-chopping toaster bots. This newer, stronger version will be able to handle so much more! With the dramatically increased processing power, the flexibility of 32 servos, and two DC motors the possibilities are limited only to your ambition and imagination.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/vdQe1IiqDKY?autoplay=1&rel=0" title="Renegade Robot Arm Operation - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/RRI-REN-01-arm.jpg" alt="Renegade Robot Arm Operation - The Robot MarketPlace" /></a></div>
</div>
<font color="cccccc">Features</font></font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
High Performance dsPIC33E Microcontroller<br />
Wi-Fi Enabled (Ad Hoc or Infrastructure)<br />
Up to 32 RC (radio-control) Servo Motors<br />
2 DC Motor Controls with Current and Temperature Monitoring<br />
32 General Purpose Input/Outputs<br />
8 ADC (Analog to Digital Converter) Inputs with 10-Bit Resolution<br />
2 Quadrature Encoder Inputs<br />
Supply Voltage Status Monitoring</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/oXbfoABalhQ?autoplay=1&rel=0" title="Renegade High-Amp Motor Driver - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/RRI-HBRHIGH-01.jpg" alt="Renegade High-Amp Motor Driver - The Robot MarketPlace" /></a></div>
</div>
<font color="cccccc">High-Amp Motor Driver Specs</font></font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
60A peak<br />
45A continuous operation with external cooling<br />
35A continuous operation without external cooling</font></p>

Renegade Wi-Fi Robot Controller with High Amp Motor Driver
You can communicate with your Renegade through simple, intuitive commands in a host of programming platforms including, but not limited to: C, C++, C#, PYTHON, and MATLAB.

$299.00
Robot MarketPlace - Renegade Wi-Fi Robot Controller with High Amp Motor Driver

Electronics
    Renegade Controllers


Click photo to enlarge.

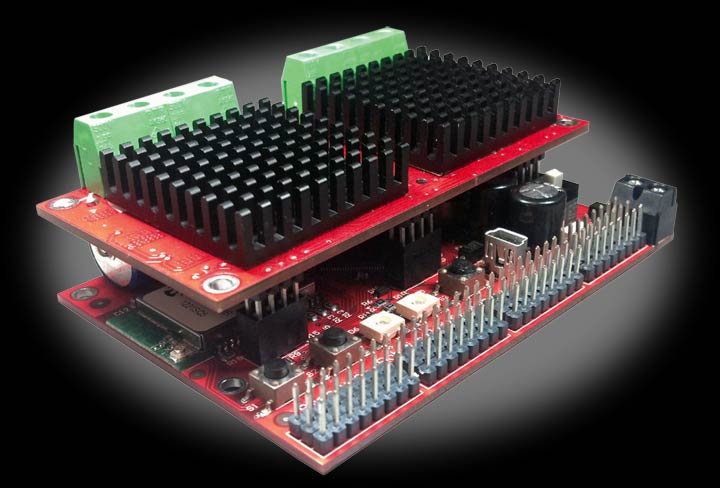

Renegade Wi-Fi Robot Controller with High Amp Motor Driver
Part# RRI-HBRHIGH-01
