NPC-B82 Right-Side Geared Motor
This motor is the RIGHT side shaft drive configuration, and makes a great drivetrain for a large robot.

$451.00

Motors
NPC Geared Motors

Click photo to enlarge.

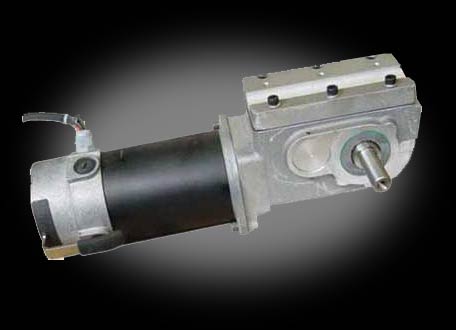

NPC-B82 Right-Side Geared Motor
Part# NPC-B82

Please see this product on the new Robot MarketPlace web site. Click here

Both B81 and B82 motors come standard with an electro-magnetic 24v parking brake, which can easily be removed if that function is not necessary. Built for continuous 24 volt 30 amp duty, they can be run at 36 volts for 5 minutes, adding about 50% more speed and torque. This motor comes in either left or right side shaft drive configurations, and makes a great drivetrain for a large robot. B81 is shown here.

24V-36V
Reversible, Permanent Magnet
18:1 gear ratio
20.4 pounds untrimmed
17 pounds trimmed
180 rpm / 18:1 gear ratio
Overall length of motor & gearbox = 14 5/8"
Width of gearbox = 3-3/8"
Diameter of motor = 3-3/4"
Length of output shaft 1-3/4"
Output shaft diameter = 17 mm
Keyway = 6mm

CAD Drawing (dwg format)

Dyno Test

Click here to add your own review or comment for this product.

12/22/2010

Robert Schroeder

MowBot

I purchased the right and left versions of this motor last year for the mowbot I was building and the mowing season was from April thru November. I ran these motors all summer, twice a week on some fairly brutal terrain with my robotic lawnmower and never even had a slight whimper out of them. The only change I'm going to make is to orient the motor housings vertically or diagonally instead of horizontally because the locking levers (which face down) sometimes catch on terrain and lock that motor causing the mowbot to go in circles, ha. If you'd like more info or just care to discuss bots or mowbots email me at rs4734@hotmail.com.
