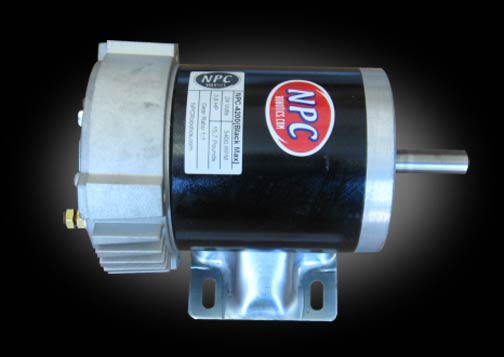

A beast
of a motor, the Black Max is the motor to use when you are done kidding
around with the small stuff. This incredible motor packs nearly 4 horsepower
under it's hood. It will need a VERY beefy speed controller, or a solenoid-powered
switch to be activated because of it's high current draw.
24V
to 36V
Reversible, Permanent Magnet, center timed
15.5 pounds
3400rpm @ 24V (approx 140rpm per volt)
draws 200 amps normal use, 470 amps at stall
3.8 horsepower
5/8" output shaft with 3/16" key slot
Steel mounting bracket included
CAD Drawing
