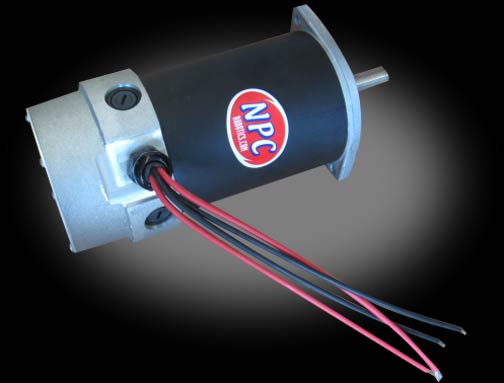

A much more powerful motor, this beast would be great for a very powerful drivetrain, or as a great spinner weapon motor.

24V-36V
Reversible, Permanent Magnet, center timed
9.6 pounds
3500rpm
approx 1.25 horsepower
draws 39amps normal use, 160amps at stall
.5" x 1 3/4" shaft 1/8" key slot

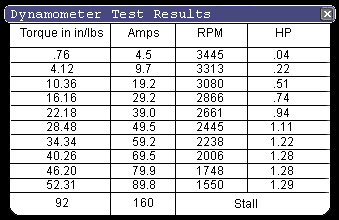

CAD Drawing  Dynamometer Results
