NPC-02446 NPC-02446 Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">A very
good solution for a lightweight robot's drive system (geared down) or
for a medium spinner weapon.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V<br>
Reversible, Permanent Magnet, center timed<br>
4.8 pounds<br>
4000rpm<br>
approx .70 horsepower<br>
draws 25 amps normal use, 81.4amps at stall<br>
2.964&quot; diameter<br>
5.5&quot; length<br>
5/16&quot; x 1 1/2&quot; shaft with flat</font></p><BR>
<img src="http://www.robotmarketplace.com/images/store_02446results.gif">

NPC-02446 Motor
A great mid-size motor that produces fantastic power (.70 hp at 4000rpm). 5/16" shaft

$89.72
Robot MarketPlace - NPC-02446 Motor

Motors
    NPC Ungeared Motors

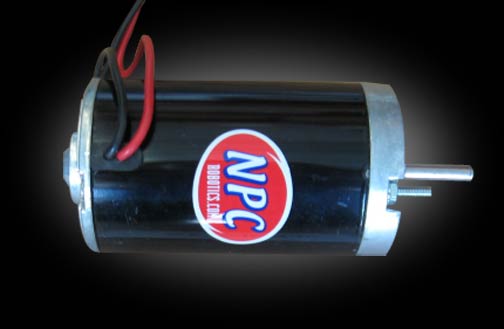

Click photo to enlarge.

NPC-02446 Motor
Part# NPC-02446




Please see this product on the new Robot MarketPlace web site. Click here









Other products you may be interested in:
NPC-K2446 Motor/Gearbox/Wheel Kit with 4 inch wheel
