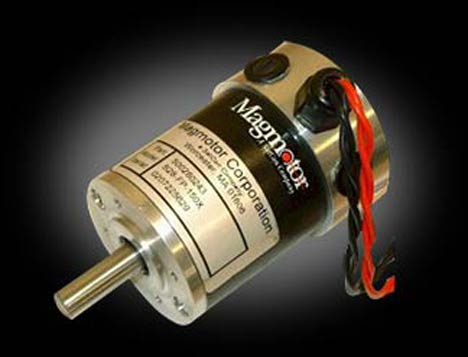

S28-150 Magmotor
Part# MAG-S28-150
| This
is a smaller, lighter version of the popular S28-400. Same diameter
and powerful magnets, just in a shorter, lighter package! And would
you believe a whopping 3 horsepower from a 3.8lb motor?
3"
Diameter, 4" long
1/2" diameter shaft with 1/8" keyway, 1.75" long
24V (can be run higher)
3 horsepower
1970 oz-in Torque
Max current 285 Amps
82% Efficiency
6000 rpm
3.8 lbs
Neodymium magnets |
| |
