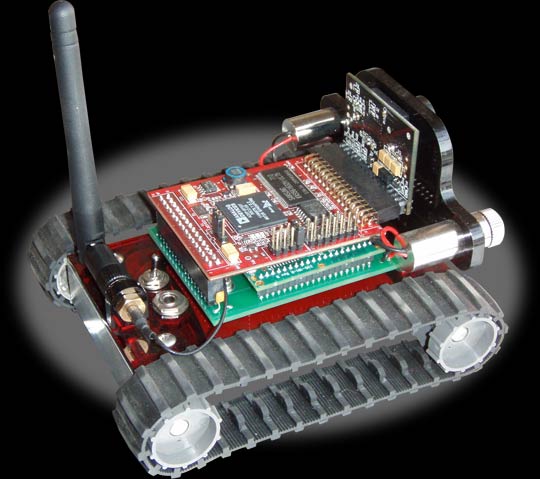

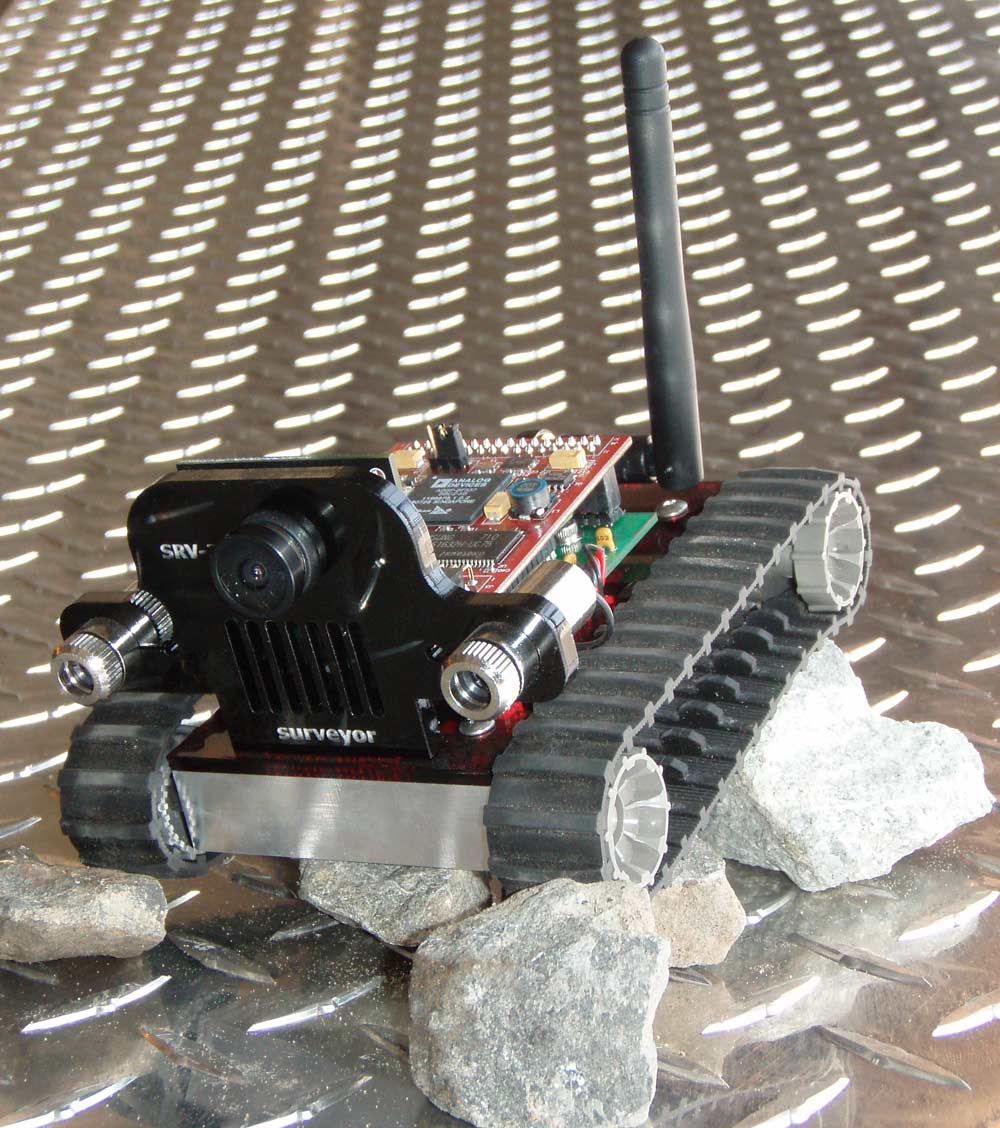

IL-SRV1Q SRV-1 Surveyor Robot <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Designed for research, education, and exploration, Surveyor's SRV-1 internet-controlled robot integrates a 1000MIPS 500MHz Analog Devices Blackfin BF537 processor, a digital video camera with resolution from 160x28 to 1280x1024 pixels, laser pointer ranging, and WLAN 802.11b/g networking on a quad-motor tracked mobile robotic base. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating
as a remotely-controlled webcam or a self-navigating autonomous robot, the
SRV-1 can run onboard interpreted C programs or user-modified firmware, or
be remotely managed from a Windows, Mac OS/X or Linux base station with Python
or Java-based console software. The Java-based console software includes
a built-in web server to monitor and control the SRV-1 via a web browser
from anywhere in the world, as well as archive video feeds on demand or on
a scheduled basis. Additional software support for the SRV-1 is also available by way of <a href="http://www.roborealm.com/help/Surveyor_SRV1.php">RoboRealm machine vision software</a>, <a href="http://www.surveyor.com/MSRS.html">Microsoft Robotics Studio</a>, and <a href="http://www.cyberbotics.com/">Cyberbotic's Webots</a>.
</font></p>
<p><b><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Features</font>
</b>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Open Source
design with full access to source code (GPL) and schematics<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Robot is
fully programmable for autonomous operation<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Extensive
software support through 3rd party applications<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Teleoperate
mode to drive robot around via console software or remotely via web browser<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Host software
has built-in web server and video archiving<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Robot can
run programs written in interpreted C and stored in onboard Flash<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wireless
remote control or viewing up to 100m indoors and 1000m outdoors (line of
sight)<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Robot can
be controlled from a terminal/console for easy testing<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Linux 2.6
support as well as &quot;bare metal&quot; programming
with GNU bfin-elf-gcc </font></li></ul>


<p><b><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Hardware</font></b>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Processor:
1000mips 500MHz Analog Devices Blackfin BF537, 32MB SDRAM, 4MB Flash, JTAG<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera:
Omnivision OV9655 1.3 megapixel 160x128 to 1280x1024 resolution<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Robot
Radio: Lantronix Matchport 802.11b/g WiFi<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Range:
100m indoors, 1000m line-of-site<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sensors:
2 laser pointers for ranging<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Drive:
Tank-style treads with differential drive via two precision DC gearmotors
(100:1 gear reduction)<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed:
20cm - 50cm per second (approx 1 foot/sec or .5 mile/hour)<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chassis:
Machined Aluminum<br>
</font>

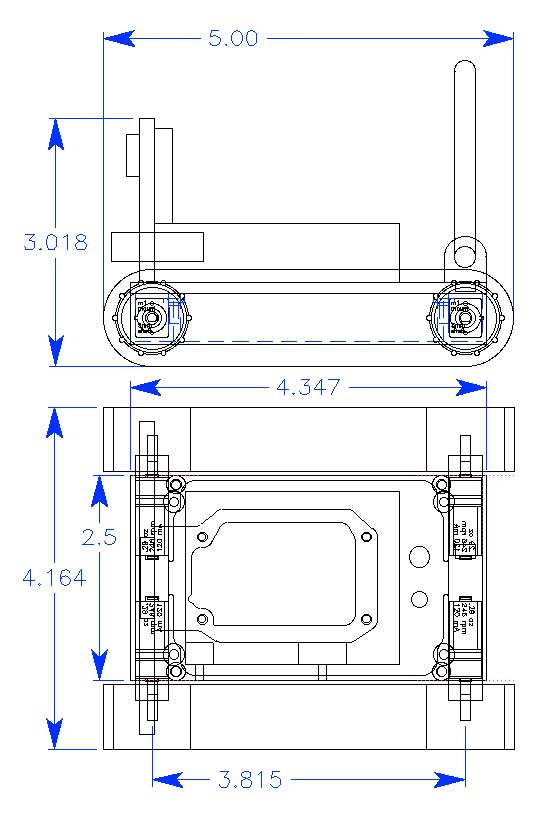

<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions:
120mm long x 105mm wide x 75mm tall (5&quot; x 4.1&quot; x 3&quot;)
(<a href="images/Surveyordiagram.jpg" target="_top">drawing</a>)<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight:
460gm (14oz)<br>
</font>

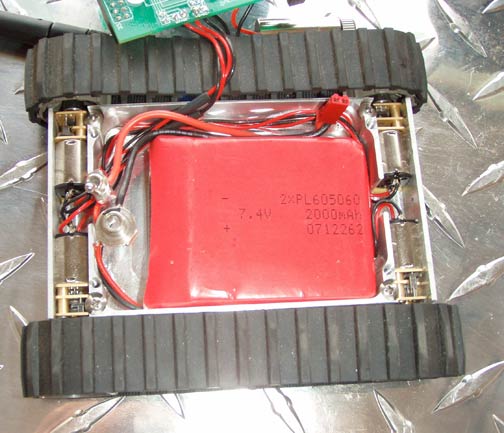

<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power:
7.2V 2000mAH Li-Poly battery pack - 4+ hours per charge<br>
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Charger:
100-240VAC 50/60Hz (US plug)</font></li></ul>


<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif"><b>Software</b></font>
<ul>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Robot Firmware: easily updated, written in C language under GPL Open Source,
compiled with GNU bfin-elf-gcc and bfin-uclinux-gcc toolchains
</font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Onboard
User Programming: interpreter for "small C" language with special robot-specific
commands are provided for running user programs from onboard Flash memory </font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Development Tools: GNU toolchains via <a href="http://blackfin.uclinux.org" target="_top">http://blackfin.uclinux.org</a></font>
<li><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Console Software: Java based application, runs on Windows, MAC, Linux. WebcamSat
web server module built into console software, allows multiple simultaneous
remote viewers via Internet</font></li></ul></p>
