This

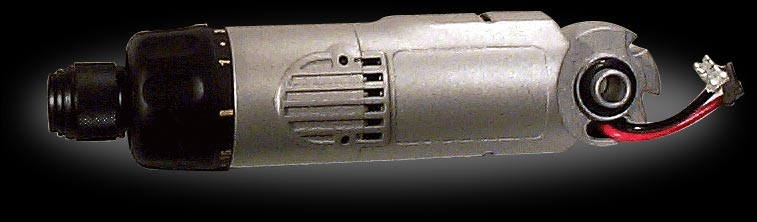

is DeWalt's 7.2v Motor and Gearbox combo, a replacement part for it’s
powerdriver of the same voltage. The motor, sold separately (above), was
originally produced for DeWalt by Johnson Motors.
The specific
numerical values below are DeWalt’s own approximations. There have
been times that they have not been found to be accurate. –Sometimes
the actual performance is better than what is listed here!
This transmission has 15 different torque settings. The highest setting
is at about 80 in-lbs. The highest speed setting is about 500 RPMs.
| DeWalt
Part # |
5100850-20 |
| Voltage
|
7.2vdc
|
| Torque |
80
in-lbs max |
| RPM |
500
max |
| Diameter |
1.625 in. |
| Length |
6.3125 in. |
| Shaft |
0.875 dia x 0.875 in. |
| Weight
|
21.20oz
or 1.3250 Lbs |
