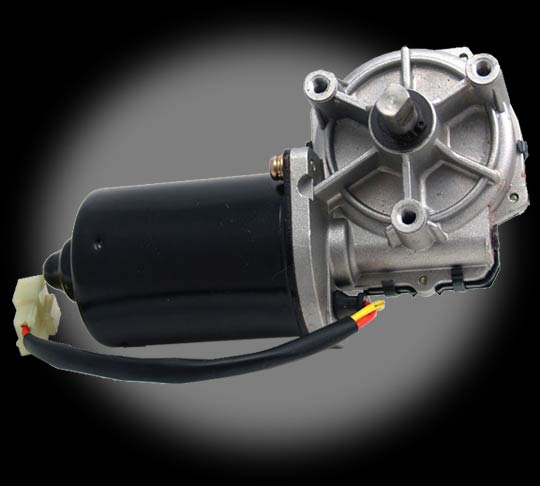

AME-226-3003 AME 226-series 12V 325 in-lb LH gearmotor - long shaft <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
is a lightweight, yet still very tourquey left-handed gearmotor from AM Equipment that was originally made
to be used as a car windshield wiper motor. This is a pretty good
value in torque per weight as well. Perfect for small to mid-sized
robot drive applications. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> This
is a very high torque, slower motor. Unfortunately there is only
a LH version, for RH use, just flip the motor over.</font></p>
<table border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Nominal
Voltage</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12vdc</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">RPMs</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">96
rpm (no load) </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
at No load</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3.4</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
at Stall</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">68</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Torque
(Max)</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">325
in-lbs or 36.7 Nm</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">11mm
dia x 64mm long with flat </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2.7lbs</font></td>
</tr>
</table>
<p></p>
