AME-210-1011 AME 210-series 12V 88in-lb RH gearmotor-shaft <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
is a great, inexpensive, gearmotor from AM Equipment that was originally
made to be used as a car window lifting motor. There are two types
of this motor to choose from-left hand or right hand. Both have a
pinion on the output and would be great for driving a chain or even
a wheel directly in the middle to small weight classes. A version
with a double-D shaft is also available. This is one of the 5 fastest
of the gearmotors that AME offers, at 100 RPMs -Which is a great
speed to have a bot's drive gearmotor run, and makes for some very
simple math! </font></p>
<p align="left"> </p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications
for rotation in <B>both</B> directions:</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Motor
only performance.</font></p></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Typical
system performance.</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage:</font></td>
<td width="444" colspan="2"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12
V</font></p></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight:</font></td>
<td colspan="2"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.3lbs</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft:</font></td>
<td colspan="2"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">10mm</font></div></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Angular-velocity
constant:</font></td>
<td width="444" colspan="2"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">10.1
rpm/V</font></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Torque
constant:</font></td>
<td width="444" colspan="2"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">134
ozf&middot;in/A</font> </td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Armature
resistance:</font></td>
<td width="444" colspan="2"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.433
Ohms</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No-load
current:</font></td>
<td width="444" colspan="2"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3
A</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Peak
efficiency:</font></td>
<td width="444" colspan="2"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">45
%</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Power
source resistance:</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0
Ohms</font></p></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.433Ohms</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Peak
power:</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0887
hp</font></p></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0342
hp</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No-load
angular velocity:</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">108
rpm</font></p></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">95
rpm</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
current:</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">27.7
A</font></p></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">13.9
A</font></p></td>
</tr>
<tr>
<td width="444"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
torque:</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3310
ozf&middot;in</font></td>
<td width="444"><p align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1450
ozf&middot;in</font></td>
</tr>
</table>

AME 210-series 12V 88in-lb RH gearmotor-shaft
This is one of the 5 fastest of the gearmotors that AME offers, at 100 RPMs -Which is a great speed to have a bot's drive gearmotor run, and makes for some very simple math!

$69.99
Robot MarketPlace - AME 210-series 12V 88in-lb RH gearmotor-shaft

Motors
    AME Motors

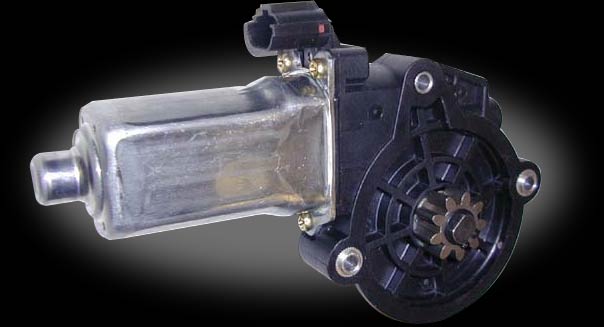

Click photo to enlarge.

AME 210-series 12V 88in-lb RH gearmotor-shaft
Part# AME-210-1011
