The E-Revo is all-new, all electric and all ready for racing right from the start!
Dual 550 Titan motors and a 16.8V EVX-2 ESC supply massive torque through a driveline
tough enough for hot brushless power systems. A TQ radio system and ProGraphix
body are also included, to make sure you arrive in solid control and sizzling
style!

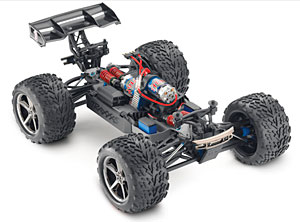

E-Revo seems to do the impossible by providing extremely high center ground
clearance (about 4-inches!) and an extremely low center of gravity (CG) on
the same truck. It's the result of careful engineering that places heavier
items such as the transmission, battery packs, and the motors as low in the
chassis configuration as possible. Even E-Revo's unique laydown shock configuration
contributes to lowering the CG. The high center ground clearance combined with
E-Revo's extreme suspension articulation make E-Revo the most versatile electric
monster truck ever conceived.
Features:
-Chassis: Ultra-rigid, honeycombed composite 0.08in (2mm) thick, gray in color
with integrated and scalable dual battery compartments, quick release
battery doors and cooling vents
-Drive: Four wheel shaft drive
-Motors: Two fan cooled Titan 550s
-Radio: Traxxas TQ 27MHz AM with throttle neutral adjust, steering and
throttle trim and reverse, 4-channel micro receiver, dual digital
waterproof steering servos with 125 oz-in of torque and 0.16 sec
transit time, transmitter does not have charge jack
-Radio Box: Sealed for running in water mud and snow
-Electronic Speed Control: Traxxas EVX-2 16.8V forward and
reverse with patent pending training mode, equipped with Traxxas
high current connectors
-Shocks: Oil filled with hard anodized Teflon coated bodies with TIN
coated shafts
-Transmission: One speed
-Differentials: Sealed, limited slip
-Ball Bearings: Full set
-Wheels: 3.8in (97mm) wide, 5-spoke black chrome Gemini
-Tires: 3.8in (97mm) wide Talon
-Suspension: Sealed pivot ball
-Steering: Dual servo
-Body: Painted and trimmed, adjustable rear wing
-Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
-Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when when viewed from front or behind vehicle
Specs:
Vehicle-
Length: 22.9in
Width: 16.5in
Height: 8.3in
Wheelbase: 14.1in
Ground Clearance: 3.9in
Weight: 9.5lbs without batteries
Front Track: 16.4in
Rear Track: 16.5in
Body-
Length: 19.8in
Width: 7.1in
Height: 4.8in
Includes:
Traxxas E-Revo Racing Monster Truck with two 550-sze motors
TQ Radio System
EVX-2 ESC
Painted body
Decals
Instruction manual |
