Tamiya Toyota Land Cruiser Rock Crawler - The Robot MarketPlace

Mad about rock crawling? If so, you already know how much fun it is to tear through tough terrain. If not, you will be after experiencing the Toyota Land Cruiser Rock Crawler kit! You'll find that its four-coil link suspension provides the flexibility you need to absord every bash, bump, and bounce, while the heavy-duty ladder frame CR-01 chassis features pressed aluminum channels and resin cross members for added strength and durability. Other high-octane features include a powerful 540-size motor; full bearings; planetary gearbox with 20T pinion gear; three-piece beadlock wheels and massive 125mm diameter tires.

Features:

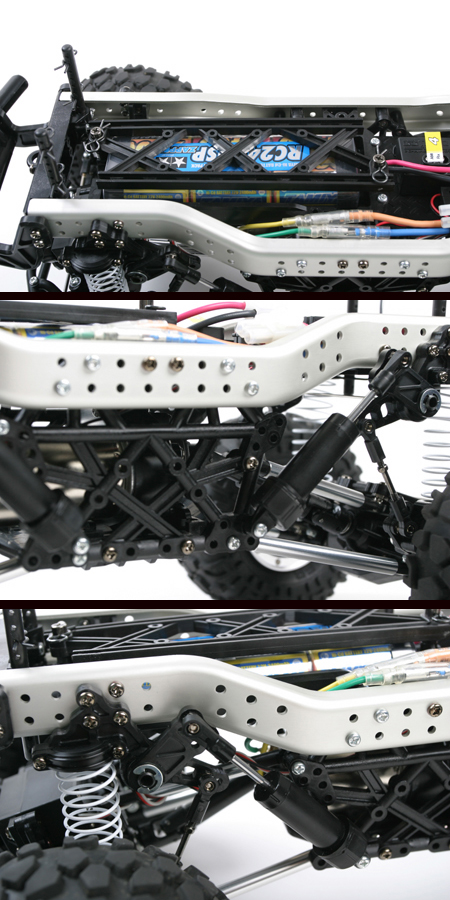

Chassis: CR-01 dedicated crawler chassis with heavy duty ladder frame pressed aluminum channels and resin cross members
Drive: Four wheel shaft drive
Motor: 540 size
Ball Bearings: Full set included
Shocks: Oil-filled, compressed via pushrods and rocker arms
Gearbox: Planetary type with 20 tooth pinion gear for a 40.5:1 gear ratio, separately available 16 - 25 tooth pinion gears for gear ratios ranging from 50.6:1 - 32.4:1
Transmission: Single speed

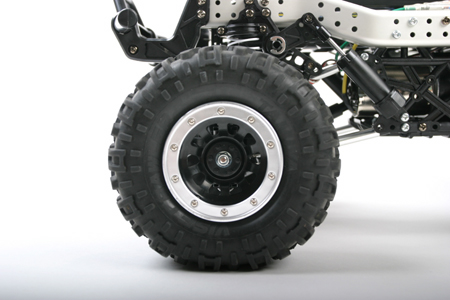

Tires: Rock crawler type 4.9in (125mm) diameter, 2.2in (56mm) wide with foam inserts
Wheels: Plastic 3-piece beadlock 2.8in (71mm) diameter, 1.4in (35.8mm) wide, black in color
Body: Lightweight clear polycarbonate
Bumper: High impact front plastic
Suspension: Four link coil spring front and rear
Differential: Planetary gear

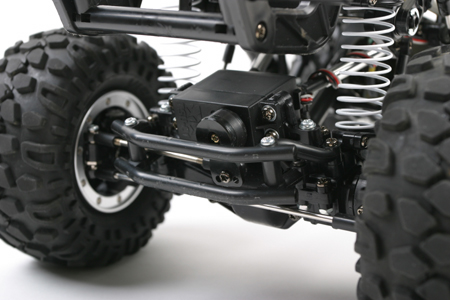

Steering: Adjustable, direct link with servo saver

Specs:
Vehicle-
Length: 17in (435mm)
Width: 10.43in (265mm)
Height: 10.47in (266mm)
Weight: 5.66lbs (2567g) approx.
Wheelbase: 11.34in (288mm)
Gear Ratio: 40.5:1 with supplied 20T pinion gear
Body-
Length: 15in (381mm)
Width: 7.25in (184mm) at rear wheels (widest point)
Height: 6in (152mm)
