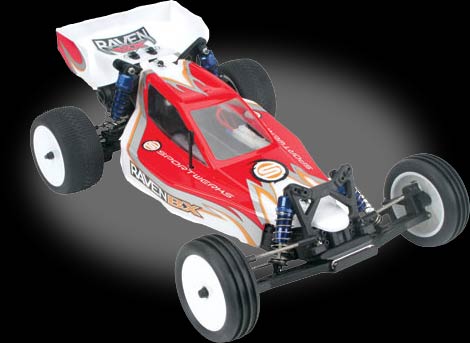

ItÕs completely set up and dialed-in right out of the
box, so thereÕs no complicated setup process or assembly required. Just plug
in your fully charged battery pack, install the ÒAAÓ batteries in the transmitter
and punch the throttle for blazing-fast off-road fun. If racing is your thing,
take the Raven BX to the track and let the Sportwerks 19-Turn motor tear up
the turns and straightaways. Either way, the Raven BX is an unmatched first-time
RC experience.
Key Features
Complete RTR
Sportwerks 19T modified racing motor
3-gear transmission with adjustable slipper clutch
Sportwerks¨ 2-channel AM pistol-grip radio system
Dynamite¨ Tazerª 15T electronic speed control with forward and reverse
7.2V 1600mAh battery
Aluminum oil-filled coil-over shocks with threaded adjustment collars
Multi-rib front and micro pin rear tires pre-glued on white dish racing wheels
19-piece ball bearing set
Adjustable steel turnbuckles
Prepainted and decorated body
Specs
Type: 2WD Electric Buggy
Scale: 1/10
Length: 15" (381mm)
Width: Front 9.75" (248mm) Rear 10" (254mm)
Wheelbase: 10.5" (267mm)
Chassis: Molded Composite
Suspension: Independent
Drive Train: 3 Gear with Slipper Clutch
Tire Type: Front Multi Rib/ Rear Mini Pin
Motor or Engine: Sporterks 19T Rebuildable
Speed Control: Dynamite Tazer 15T
Radio: Sportwerks 2-channel AM
Servos: Sportwerks hi-torque steering servo
Batteries: 7.2v 1600 mAh (included)
Wheel Size: 2.2"
Kit/RTR: RTR
Shock Type: Aluminum coil-over, oil-filled
Body: Factory-painted with decals applied
Ball Bearings: Complete
Needed to Complete
8 AA alkaline batteries (for transmitter)
Charger for 6-cell battery pack
