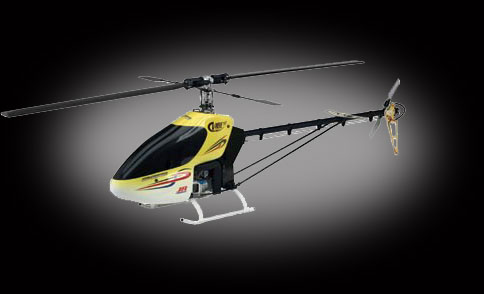

Robot MarketPlace - Vibe 90 3D Heli Kit

Key Features
• New no-bind high-cycle swash design
• New 1-piece CNC rotor hub with O-ring dampeners
• New supported bevel gear hubs
• New CNC BB aluminum tail pitch lever
• New HD tail rotor hub
• New HD tail case design
• New 3D dynamic 3-color pre-painted canopy

Overview
Based on the popular Vigor ™ CS, the Vibe 90 3D™ kit features many parts that have been redesigned and upgraded to handle the incredible loads of today’s “total chaos stick-bending" flying styles.

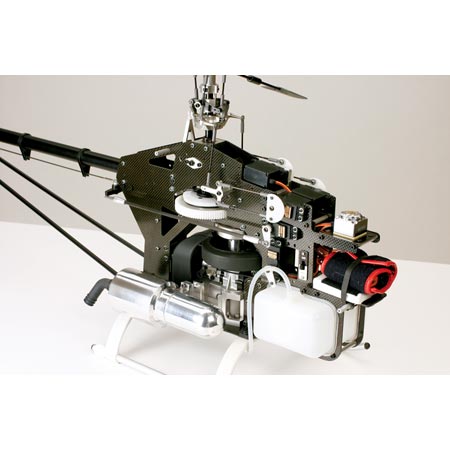

Along with the redesigned carbon frames and carbon fins, the all-important drive system has received a total upgrade, beginning with a larger diameter start shaft that uses a heavy-duty, one-way bearing. The new hardened main shaft, with its heavy-duty autorotation assembly and newly supported bevel gear hub has also been beefed up. The revised control system features an upgraded High Cyclic Swashplate, one-piece CNC 3D center hub with O-ring dampeners, composite blade holders, control arms and a brand new adjustable flybar/blade ratio system.

On the tail, the rotor hub design, hub case, pitch lever, and control lever have all been upgraded, complete with a new carbon tail control rod for improved actuation. Even thenew prepainted canopy has been sculpted to reduce drag in all axes, so the model flows through flips, rolls, tumbles and pirouettes easier than ever before. This heli can take an advanced pilot’s best shot and come back for more.

Tail Rotor Diameter 10.34 in

Gross Weight 10.2 to 10.5 lb

Length 54 in

Main Gear Ratio 8:1:4.83

Needed to Complete

6-channel or greater R/C helicopter system with 120° or 140° CCPM with 5 servos

1800mAh or larger receiver battery

Gyro

.90 – .91 R/C helicopter engine

Helicopter type muffler
