0V-HAN2925 Tribute 36 ARF <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Key
Features </font><font size="2" face="Arial, Helvetica, sans-serif"> </font><font face="Arial, Helvetica, sans-serif"><br>

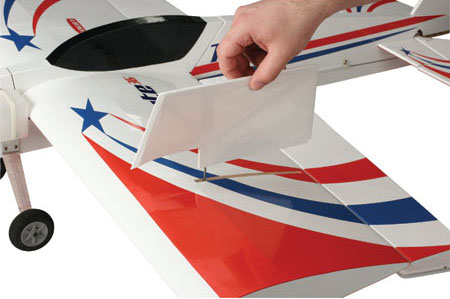

<font color="#00FF66" size="2">&bull; Removable Side Force Generators allow remarkable
3D performance<br>
&bull; Extremely lightweight all-wood profile construction<br>
&bull; Designed by Hangar 9&reg; ace Mike McConville and aerodynamicist George Hicks<br>
&bull; Covered in exclusive Hangar 9 UltraCote&reg;<br>
&bull; Removable 1-piece wing &amp; bolt-on tail provide easy transport and storage</font> <font color="#00FF66">
</p>
</font>
</font>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Overview</font> <font face="Arial, Helvetica, sans-serif"><br>
<font color="#00FF66" size="2">3D fun-flying has never been better with Hangar
9&#8217;s first profile wood ARF. The Tribute 36 ARF is a lightweight balsa-and-ply
sport performer designed by Mike McConville and George Hicks, two of the RC
industry&#8217;s most respected pilots. Utilizing a flat profile-style fuselage
and innovative Side Force Generators that contribute very strong rudder authority,
the Tribute 36 is perfect for quick and easy weekend sport fun.</font></font> </p>
<p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="92"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Wing
Span</font></td>
<td width="209"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">44
5/8&quot; (1133.4mm) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall
Length</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">48&quot;
(1219.2mm) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Wing
Area</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">690
sq. in. (44.5 sq dm) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Flying
Weight</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">4&#8211;4.5
Lbs (1.8&#8211;2 kg) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Engine
Size</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">.32&#8211;.36
2-stroke, .40&#8211;.52 4-stroke (some 4-strokes require mount modification)
</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Radio</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">4 channel
w/ 5 servos </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Trim
Scheme Colors</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">White, True Red, Deep Blue</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">CG
(center of gravity)</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">4-1/2&quot;
behind the leading edge </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Control
Throw (Ailerons)</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">LOW:
31deg (1 3/4&quot;) HIGH (3D): 45deg (2 1/2&quot;) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Control
Throw (Elevator)</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">LOW:
20deg (1 1/4&quot;) HIGH (3D): 45deg (3&quot;) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Control
Throw (Rudder)</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">LOW:
45deg (4 1/2&quot;) HIGH (3D): 45deg (4 1/2&quot;) </font></td>
</tr>
</table>
