0V-EFL7000 E-flite Super Airliner DF ARF <font color="#666666" size="2" face="Arial, Helvetica, sans-serif"><font color="#CCCCCC" size="2">Key
Features </font></font><font size="2" face="Arial, Helvetica, sans-serif"></font><font face="Arial, Helvetica, sans-serif"><br>
<font color="#00FF66" size="2">&bull;&nbsp;Fully molded and painted for quick assembly<br>
&bull; Ducted Fan Units are included and pre-installed<br>

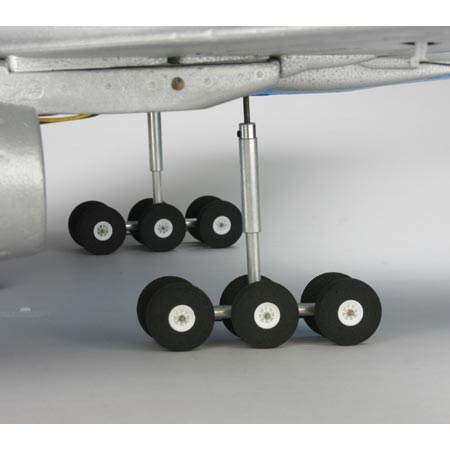

&bull;&nbsp;Shock-absorbing landing gear and more<br>
&bull; Molded Aileron Servo pockets<br>
&bull; All flight control surfaces come pre-hinged<br>
&bull; Large size, generous wing area, and light weight</font> <font color="#00FF66">
</p>
</font>
</font>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Overview</font><font face="Arial, Helvetica, sans-serif"><br>
<font color="#00FF66" size="2">Two ducted fan units are included and ready to
accept the recommended motors. The fully molded and painted airframe
requires little time to assemble, making this Super Airliner ready for takeoff
in a short amount of time. Additionally, all flight control surfaces are pre-hinged,
reducing assembly time and ensuring smooth response right away. The included
shock absorbing landing gear ensures that takeoffs and landings are smooth and
stable. </font></font></p>
<p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="92"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Wing
Span</font></td>
<td width="242"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">55
in (1400mm) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall
Length</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">57
in (1450mm) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Wing
Area</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">505
sq in (3245 sq cm) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Flying
Weight</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3.25
lb (1.5 kg) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Motor
Size</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">BL
400 DF Outrunner 3500Kv (2 required) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Radio</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">JR
Sport S400 or SX600 </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Servos</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">four
(4) E-flite S75 sub-micro servos and one JR Sport servo</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Trim
Scheme Colors</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Prepainted</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">CG
(center of gravity</font><font color="#00FF66" size="2">)</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">5.5
in (140mm) back from the leading edge </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Prop
Size</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">66mm
3 bladed fan unit (2) (included) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Speed
Control</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">20
Amp Brushless (2 required) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended
Battery</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2100
3-cell Li-Po (2 required) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Flaps</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif"> n/a
</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Retracts</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif"> n/a
</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Approx.
Flying Duration</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">9 -
10 minutes </font></td>
</tr>
</table>
<font face="Arial, Helvetica, sans-serif"> <br>
<font color="#CCCCCC" size="2">Needed to Complete</font> </font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Two
E-flite 400DF motors </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Two
3-cell 11.1V 2100mAh Li-Po battery packs (THP21003SPL)</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">4-channel
FM radio system</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Two
20A brushless ESCs </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Four
sub-micro servos (2 aileron, 1 rudder &amp; 1 steering) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">One
standard servo (elevator) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Three
Y harnesses (aileron, throttle and rudder/steering servos) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Two
6-inch extension lead (may be needed for esc's) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Three
12-inch extension leads (aileron &amp; steering servos) </font></td>
</tr>
</table>
