Key
Features
• Fully built and covered airframe is highly prefabricated
• All flight control surfaces are pre-hinged
• Aft float mount is included with kit for flying off water
• Firewall set up for two different brushless outrunner motors
• Fully prebuilt and covered airframe
• Strong landing gear mounts for smooth grass takeoffs and landings
• Preinstalled steerable tailwheel
• Prehinged flight control surfaces
• Large wing area
• Wing designed for optional quad flaps
Overview

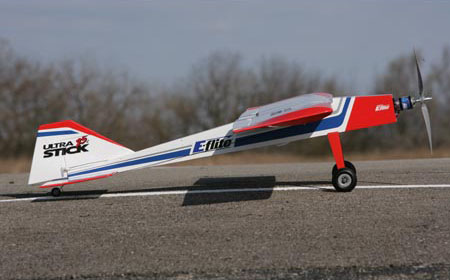

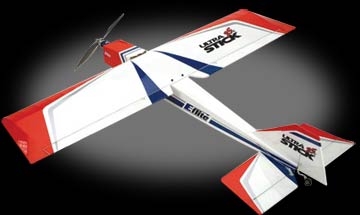

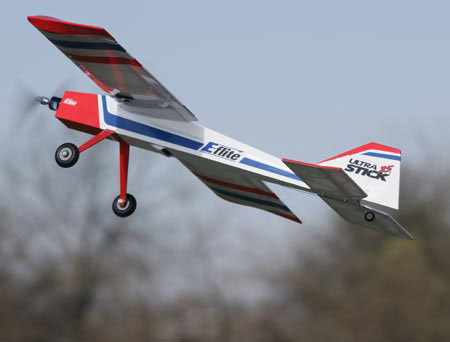

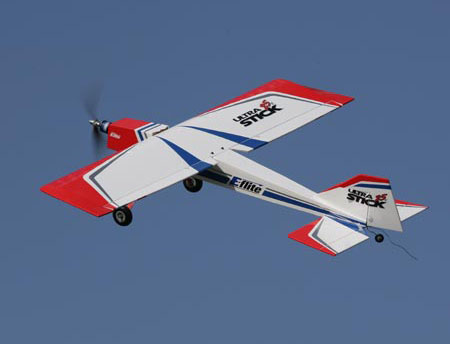

This plane is based on the hugely
popular Hangar 9® Ultra Sticks and offers
the same excellent flying characteristics, but with electric power rather than
glow.
No other .25-size Stick on the market comes
out of the box with so much ready to go. The airframe is fully built and covered,
the steerable tailwheel is factory-installed and the control surfaces are prehinged.
That means less assembly time and more flying time for the modeler.
It’s also set up to accept two different
brushless applications, giving consumers more options to fit into their personal
preferences. Plus, the wing is designed for optional quad-flap configuration,
and separately purchased fiberglass floats can be added for fun touch-and-go’s
at the lake.
| Wing
Span |
50
in (127 cm) |
| Overall
Length |
41.5
in (105 cm) |
| Wing
Area |
480
sq in (31 sq dm) |
| Flying
Weight |
3.4
lb (1.5 kg) |
| Motor
Size |
E-flite
Power 25 Outrunner or Power 32 |
| Radio |
4 Channel
or greater |
| Servos |
4 Mini
(2 additional for quad flaps) |
| Trim
Scheme Colors |
UltraCote
Flame Red, Deep Blue& Transparent White |
| CG
(center of gravity) |
2-1/2
in (63.5mm) behind the leading edge against the fuse |
| Prop
Size |
12x6E
for Power 25 or 11x7E for Power 32 |
| Hardware
Included |
Yes |
| Speed
Control |
40-45A
Brushless for Power 25 or up to 60A for Power 32 |
| Recommended
Battery |
3S2P
4200mAh 11.1V Li-Pi with Power 25 or 4S2P 4200mAh 14.8V Li-Po with Power
32 |
| Control
Throw (Ailerons) |
1/2
in (13mm) Up/Down Low Rates or 7/8 in (22mm) Up/Down High Rates |
| Control
Throw (Elevator) |
3/4
in (19mm) Up/Down Low Rates or 1 in (25mm) Up/Down High Rates |
| Control
Throw (Rudder) |
2 in
(51mm) Left/Right Low Rates or 2-1/2 in (63.5mm) Left/Right High Rates |
| Approx.
Flying Duration |
15-20
minutes with 3S2P 4200mAh, 15-17 with 4S2P 4200mAh, or 8-10 minutes with
Ni-Mh |
Needed to Complete
| Radio
System |
4
channels or more (7 with quad flaps) |
| Motor |
Power
25 Outrunner or Power 32 |
| ESC |
40A-60A
brushless (depending on battery and prop used) |
| Battery |
10-cell
12.0V 1800mAh Ni-MH or 3-cell 4200mAh Li-Po |
| Servos |
4 JR
Sport MN-48 |
|
